UZP 30 EQUIPMENT for bevelling small flat steel
Description
UZP 30 EQUIPMENT for bevelling small flat steel
Only for use with UZ50 TRIUMPH
- Maximum bevel width 34 mm
- With automatic feed

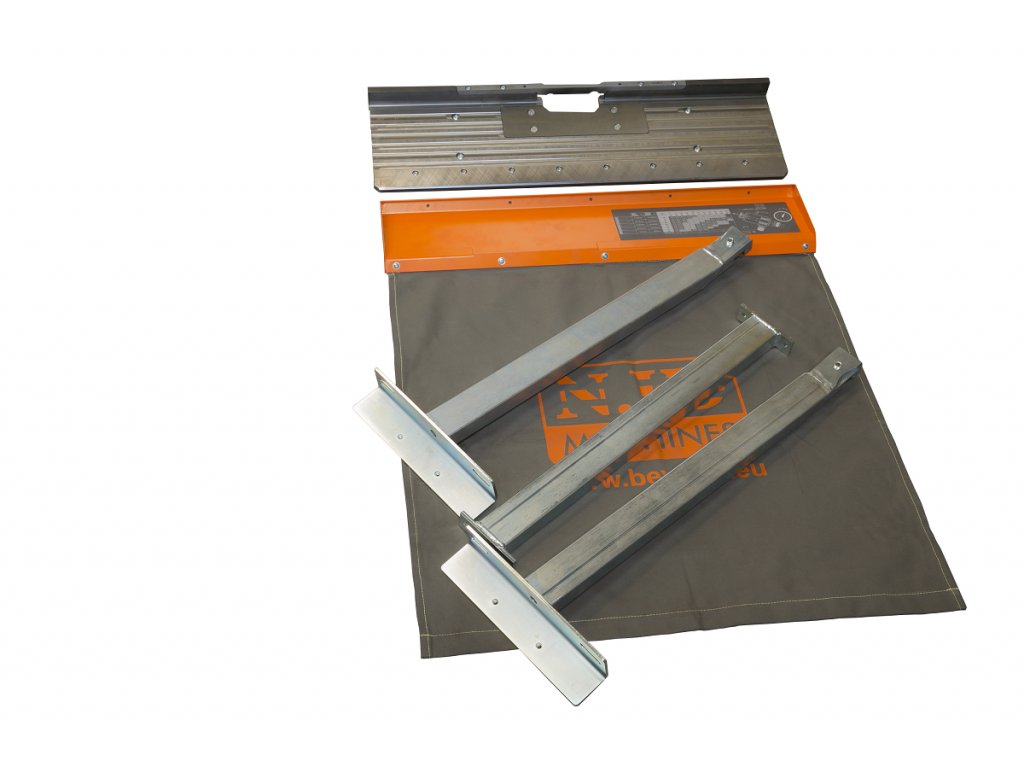

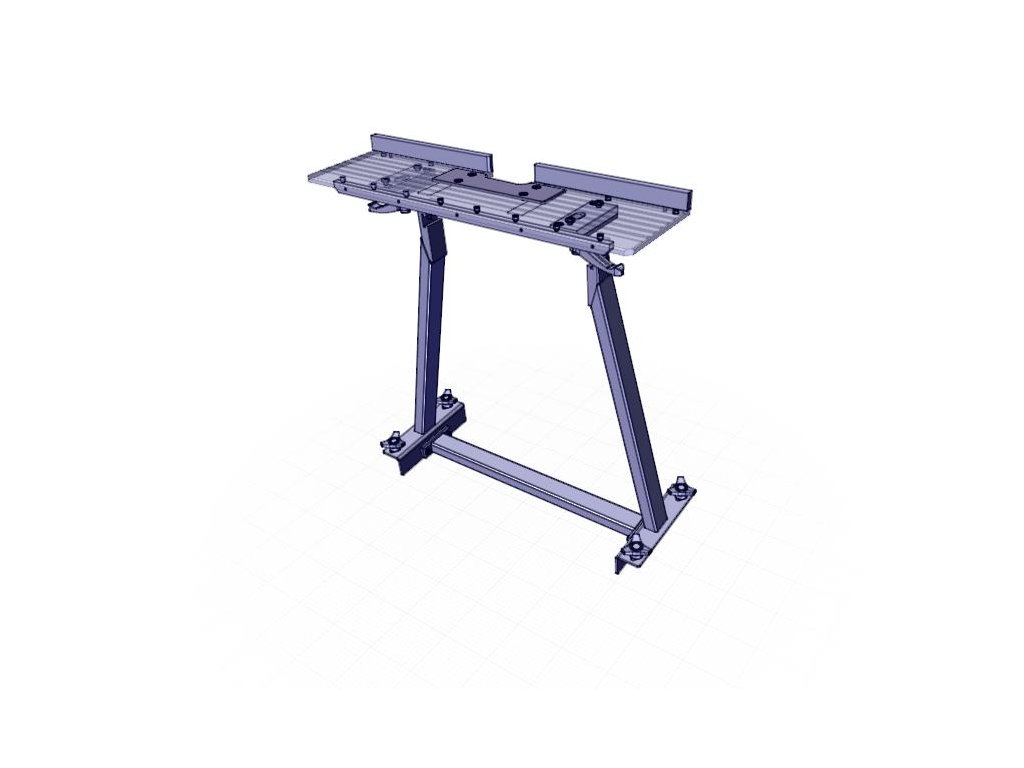

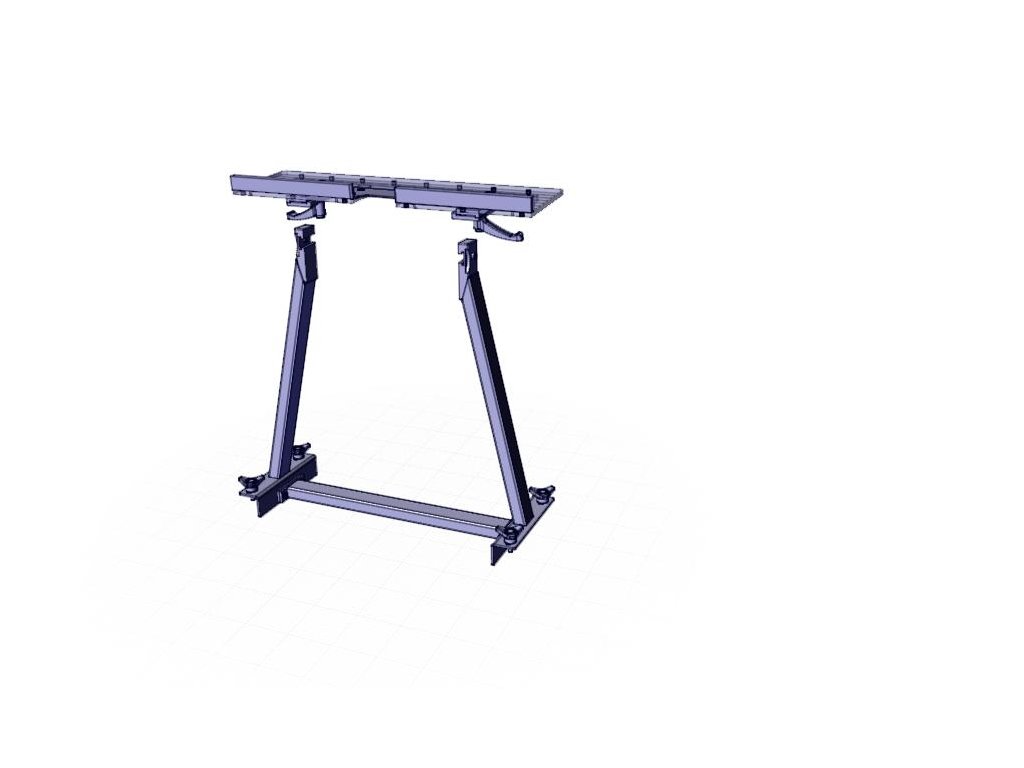

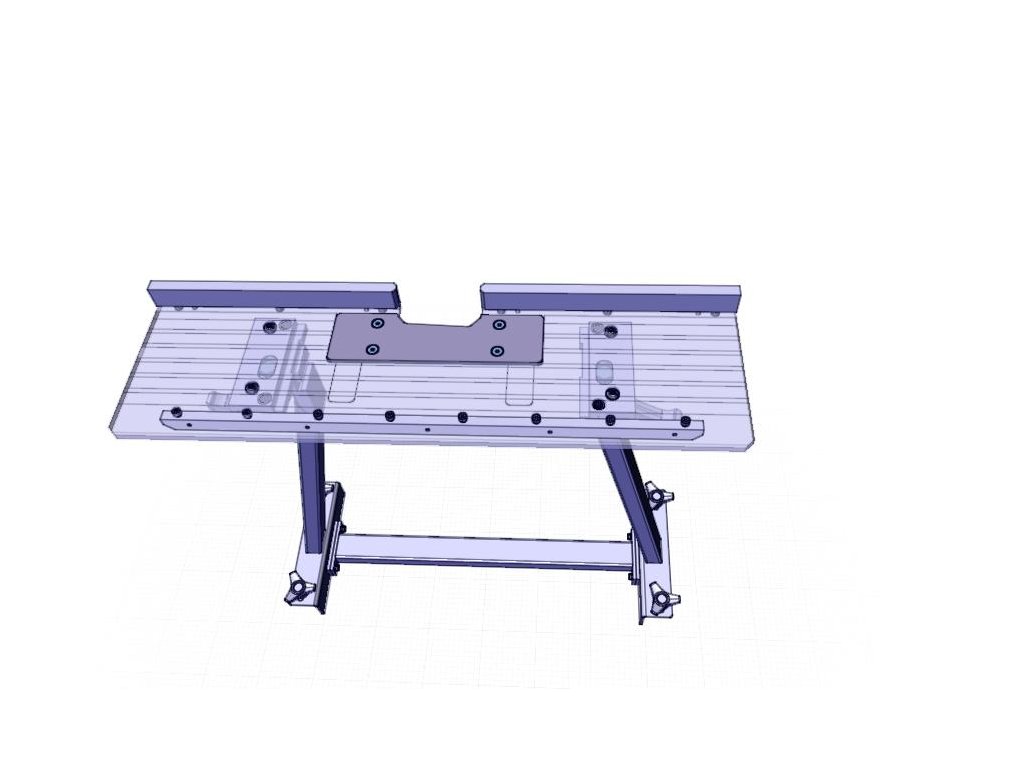

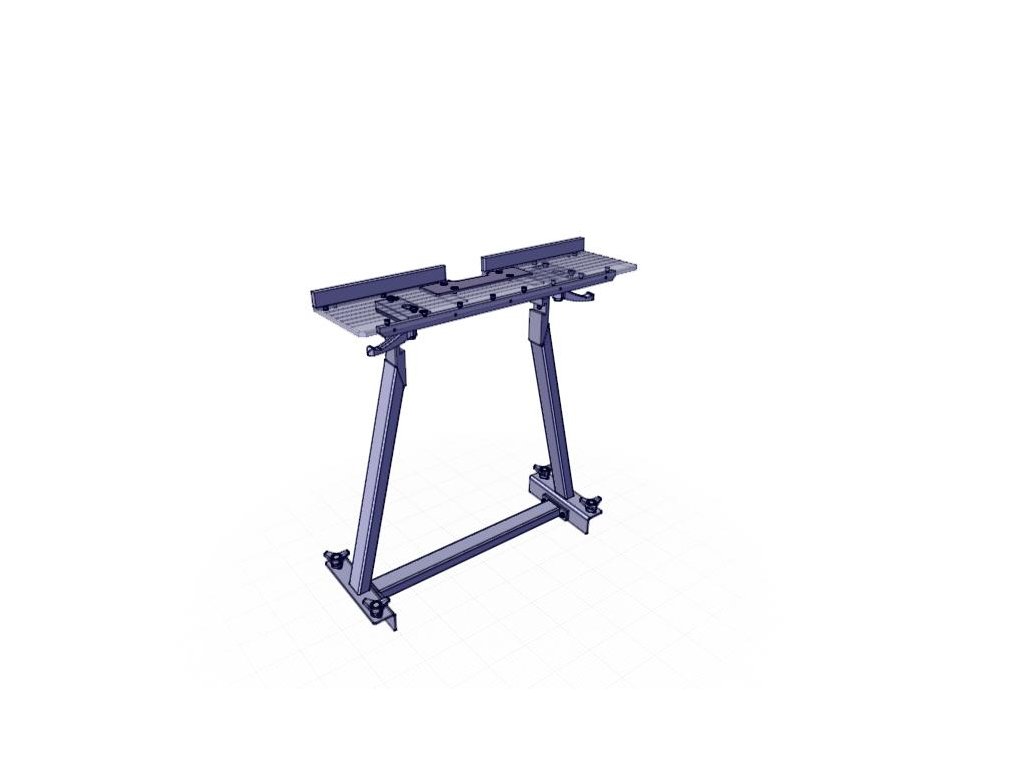

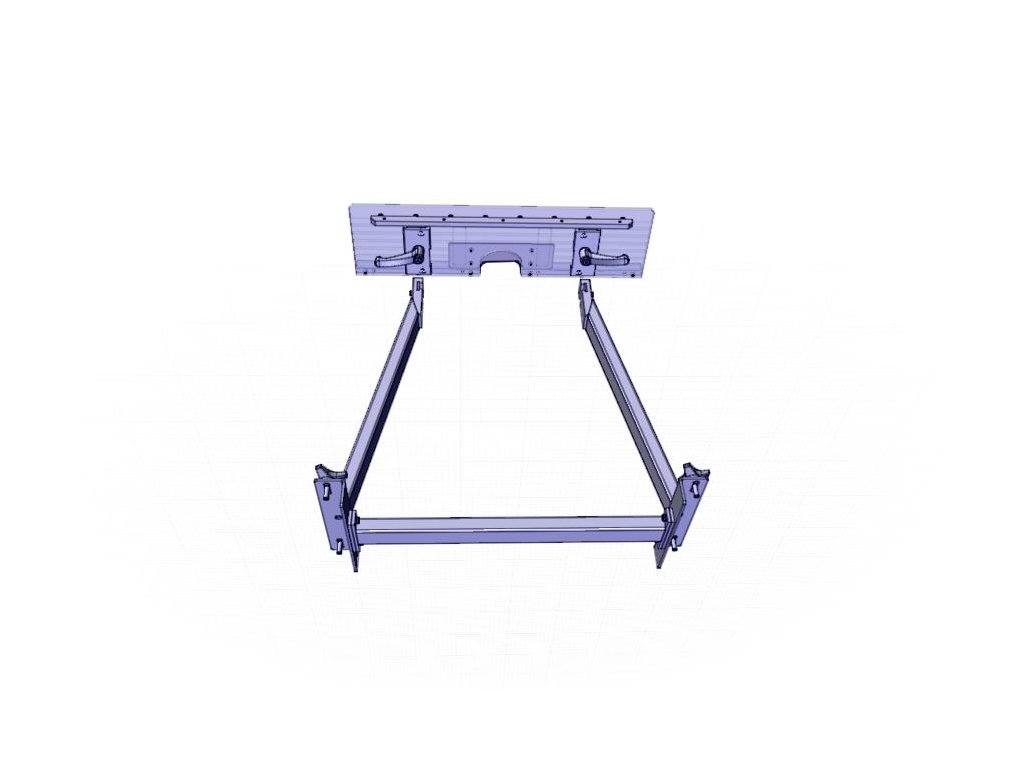

The UZP 30 product allows the UZ50 TRIUMPH to be converted into a stationary bevelling station for processing smaller workpieces or narrow flat steel. It can be purchased separately or as a set with the UZ50 TRIUMPH machine.
With this accessory, the machine has all the advantages of the standard UZ50 TRIUMPH.
For example, machining harder materials such as Hardox, armored steel, etc. But it can also be used for unalloyed carbon steel. The minimum edge length of the workpieces must be at least 250 mm.
- Variable adjustment of the desired angle from 20°-60° without replacing parts
- Bevelling of small workpieces that are inserted directly into the machine. The entire machining process is automatic, without the need to hold the workpiece.
- Equipped with the latest safety features
- Option to purchase ASP–Active Smart Protection
- Processes difficult materials, e.g., stainless steel, Hardox Weldox, and Domex
Technical data: (Only for use with UZ50 TRIUMPH)
- Max. bevel width (hypotenuse): 34 mm
- Bevel angle adjustment range: 20°–60°
- Material thickness: 7 mm - 70 mm
- Milling motor power: 4000 W
- Feed rate: 0 - 1.2 m/min
- Weight: 175 kg
- Dimensions: 1010 x 745 x 1326 mm
- Number of cutting inserts: 5
Art. Nr.: 1942
