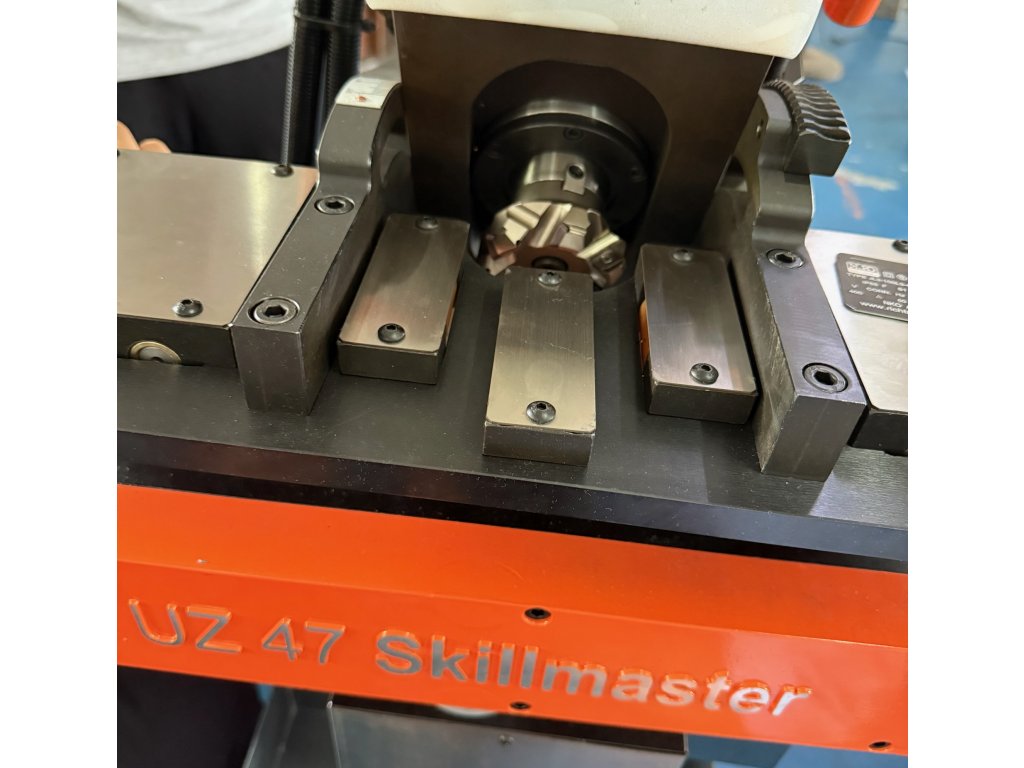

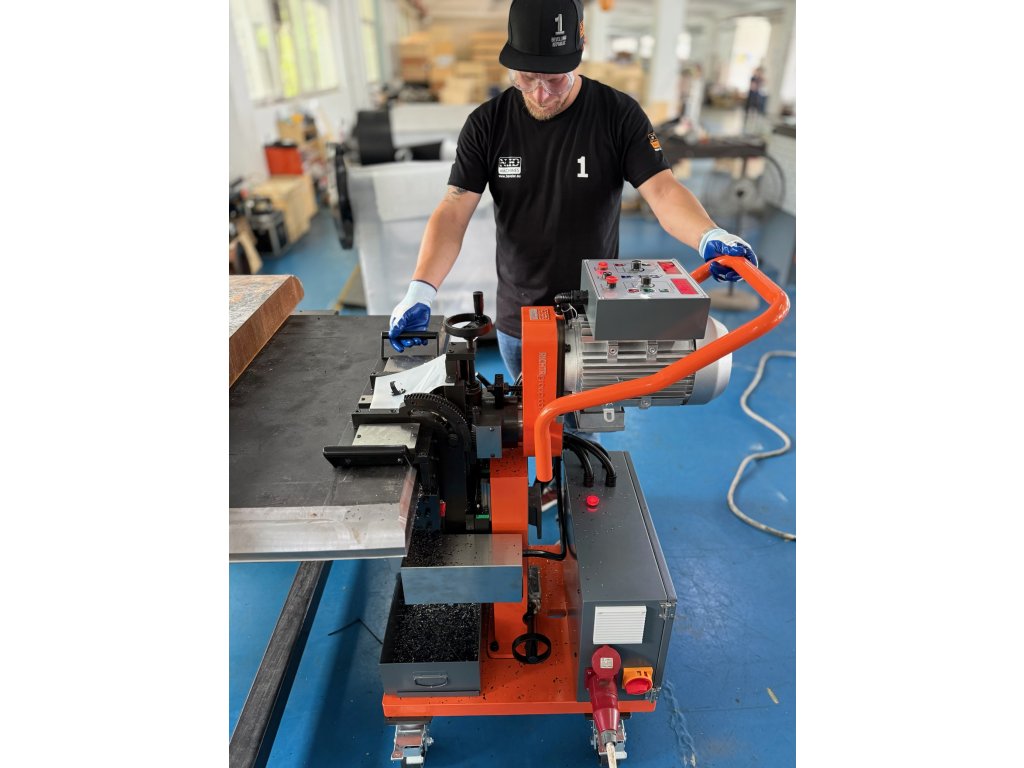

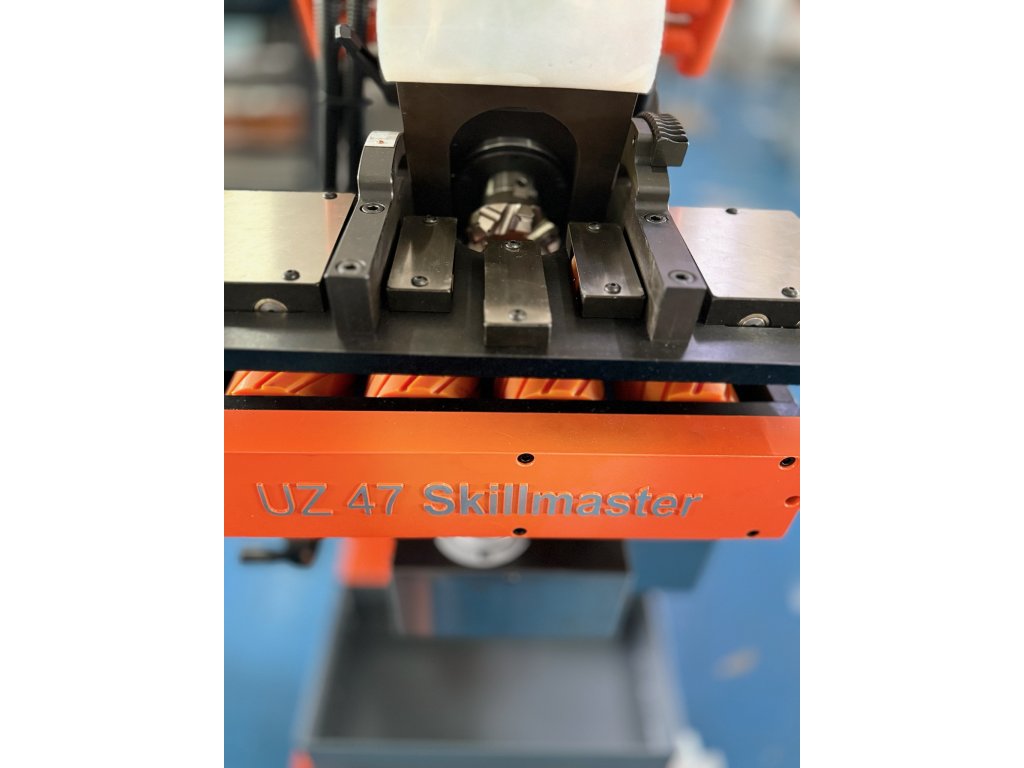

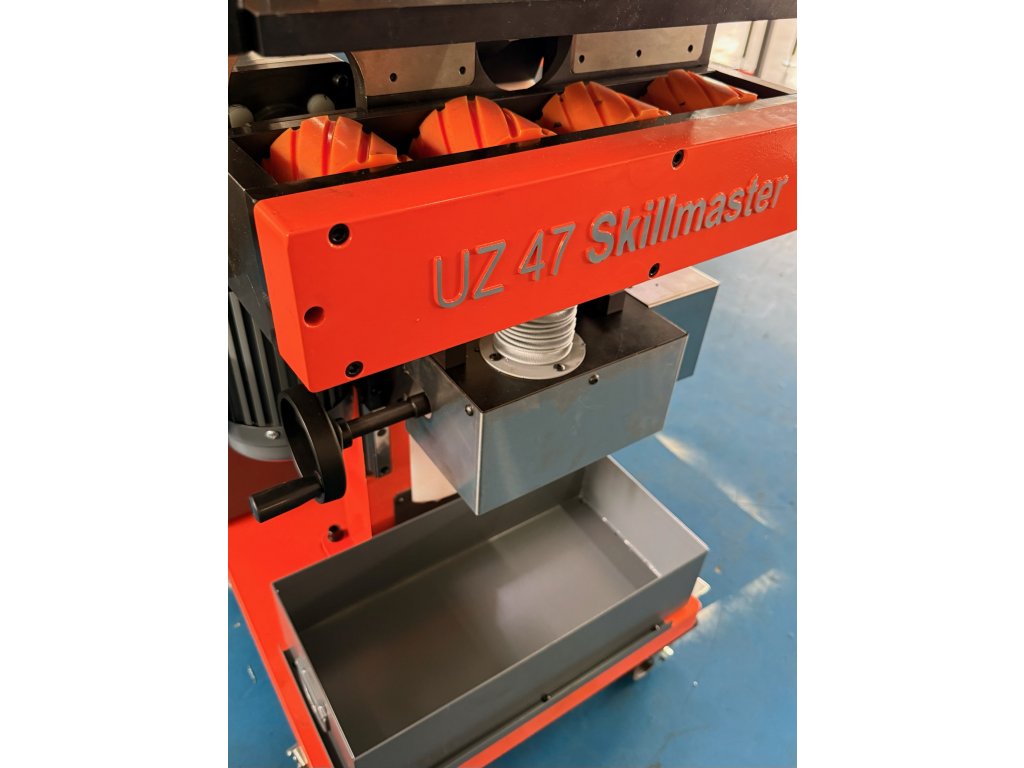

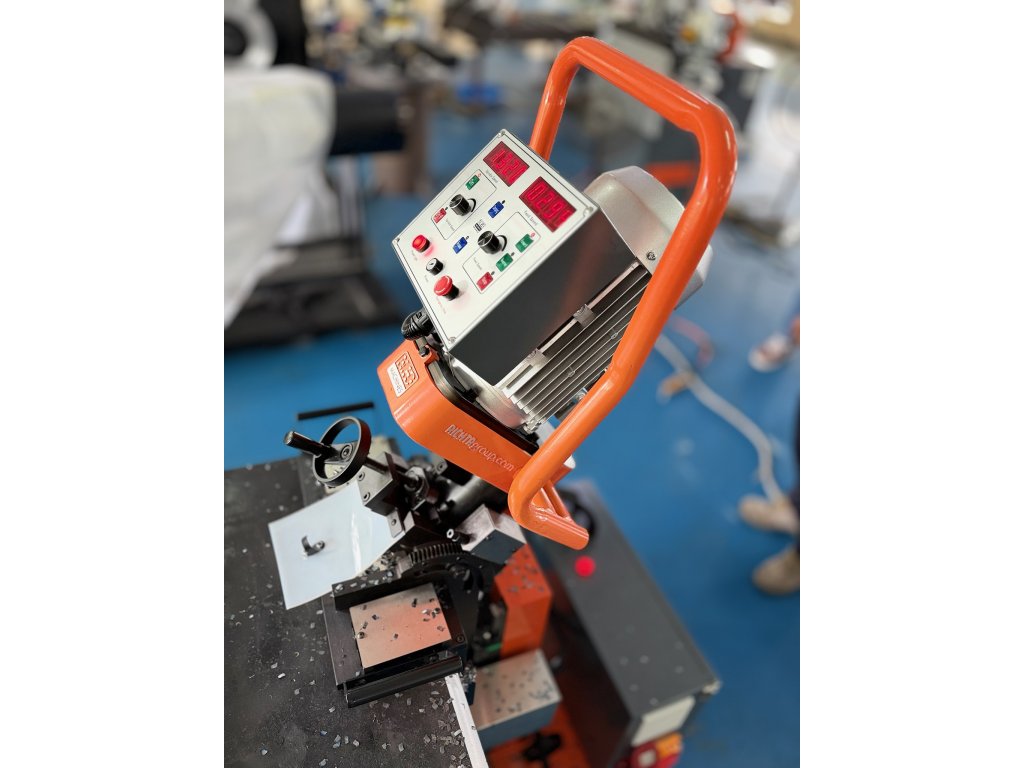

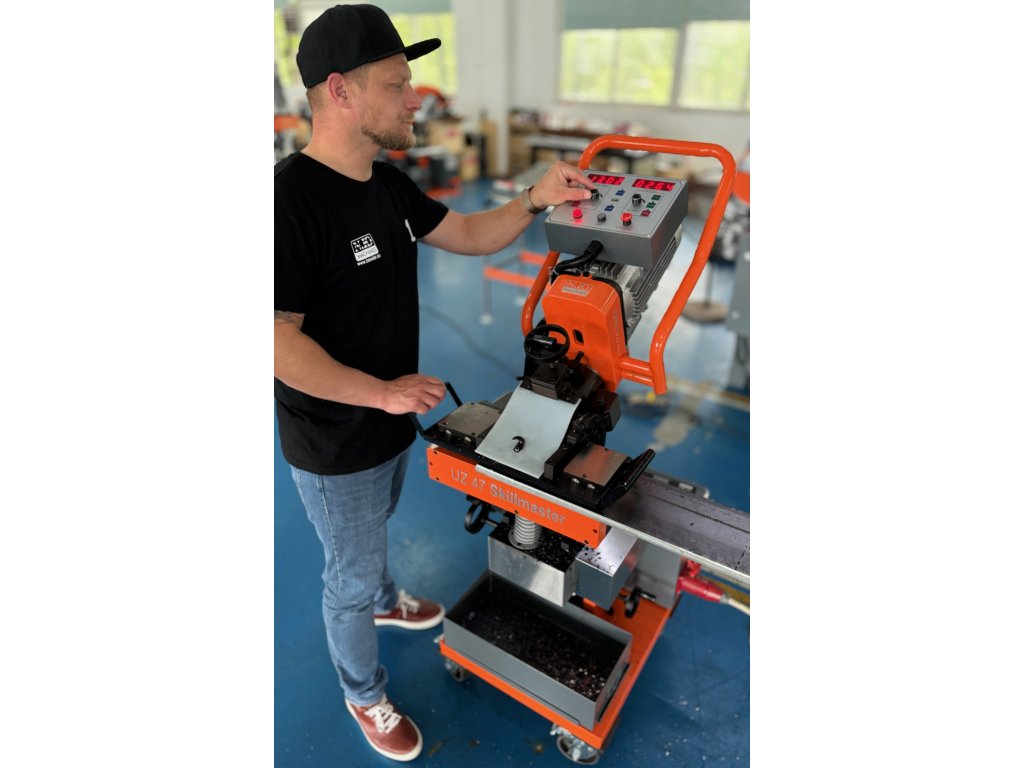

Bevelling machine UZ47 SKILLMASTER

Not rated


Maximum bevel width 47 mm with automatic feed

Availability Auf Anfrage
Price 15 734,18 € incl. VAT
13 222 € / pcs

Parameters

Product code 4700
Brand NKO MACHINES
Brand's website beveler.eu/
Category Bevelling machines
Warranty 2 years


Description

Bevelling machine UZ47 SKILLMASTER
- Maximum bevel width 47 mm
- With automatic feed

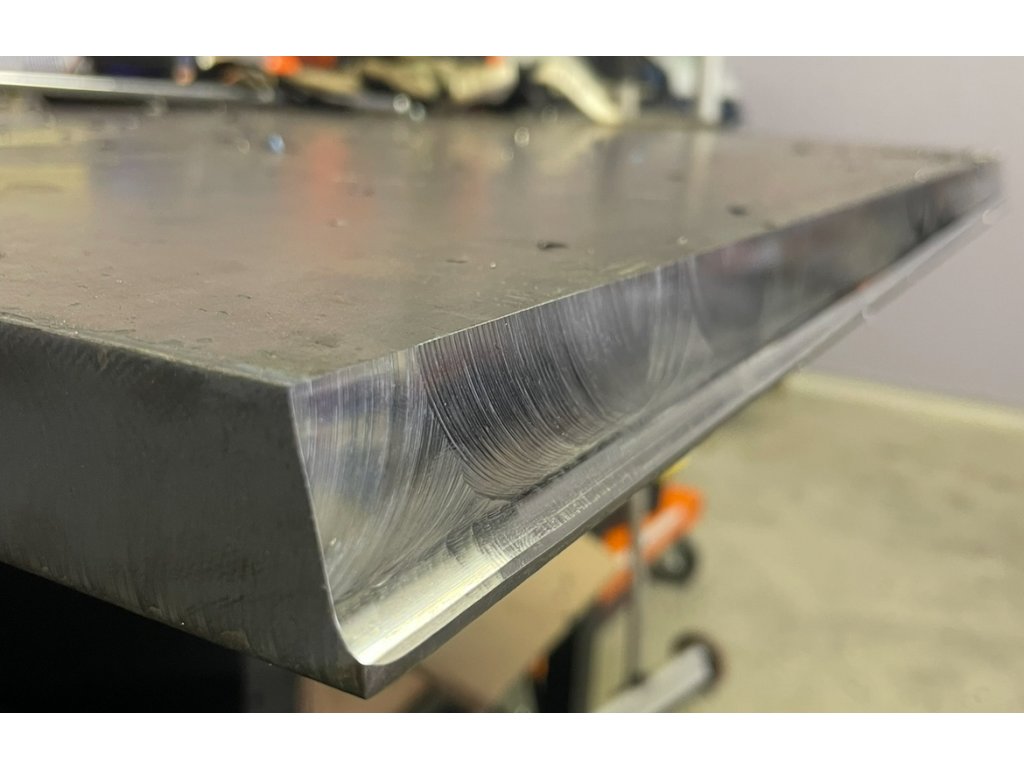

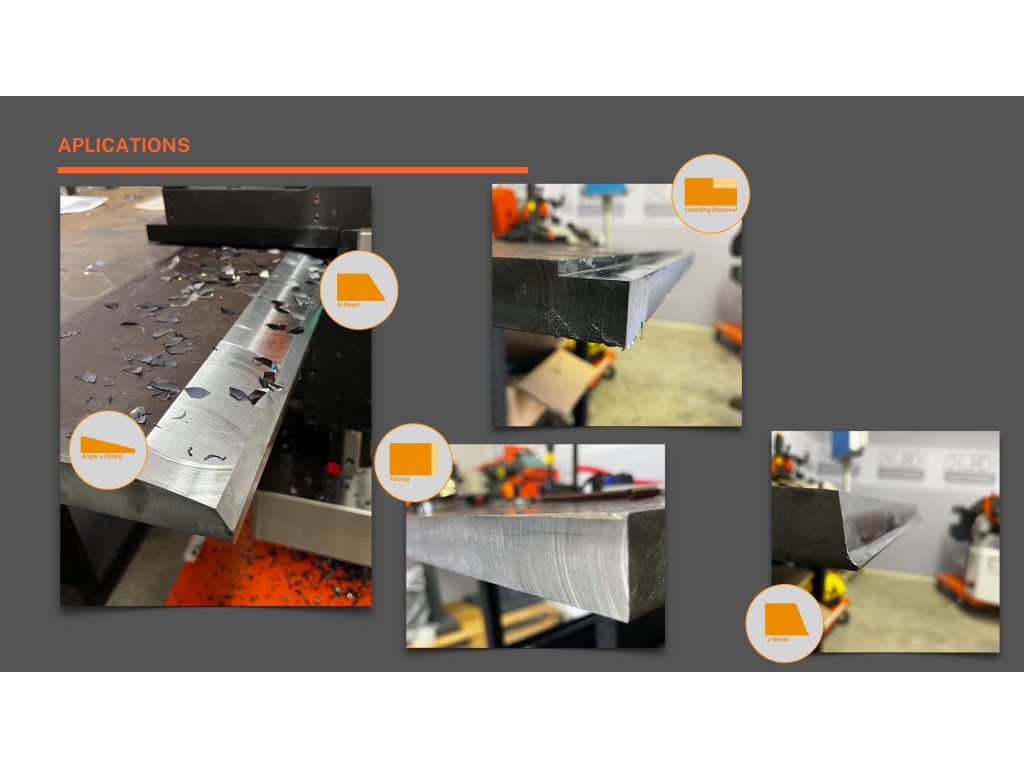

Unique multi-purpose bevelling machine with automatic feed for applications such as V-bevel, J-bevel, Cladding Removal, Facing and +70° chamfers.
Suitable for machining structural steels including higher strength steels, stainless steels and other harder to machine materials such as Hardox or Domex.

  • Automatic workpiece clamping system.
  • Infinitely adjustable tool speed.
  • Infinitely variable machine feed speed.

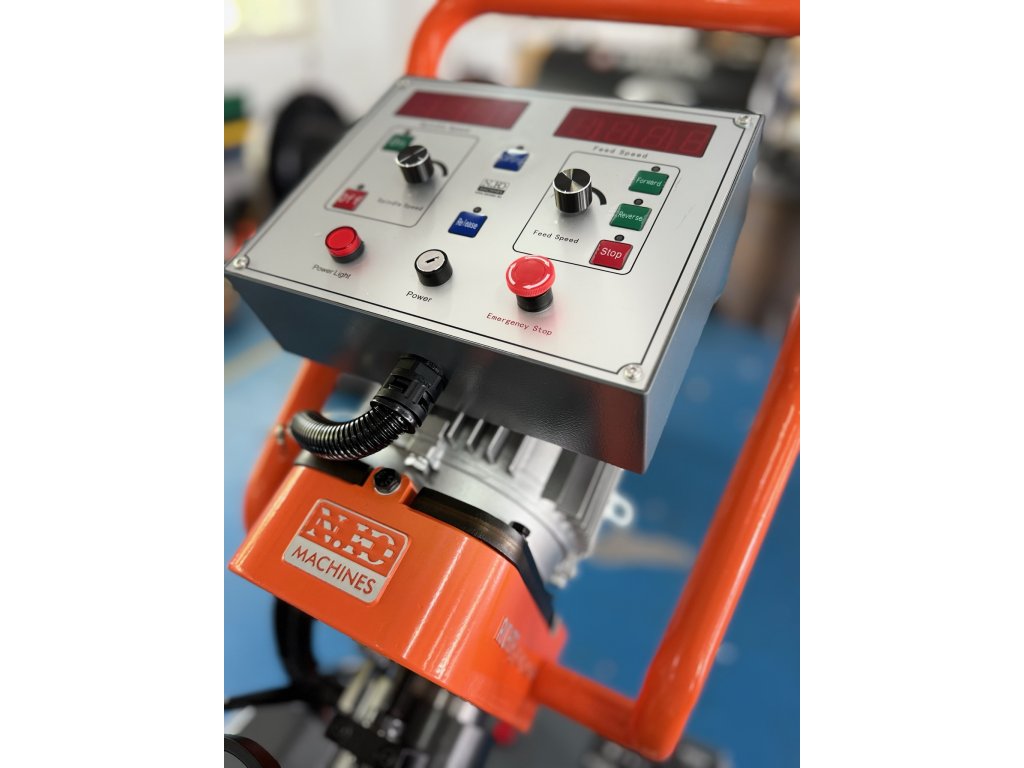

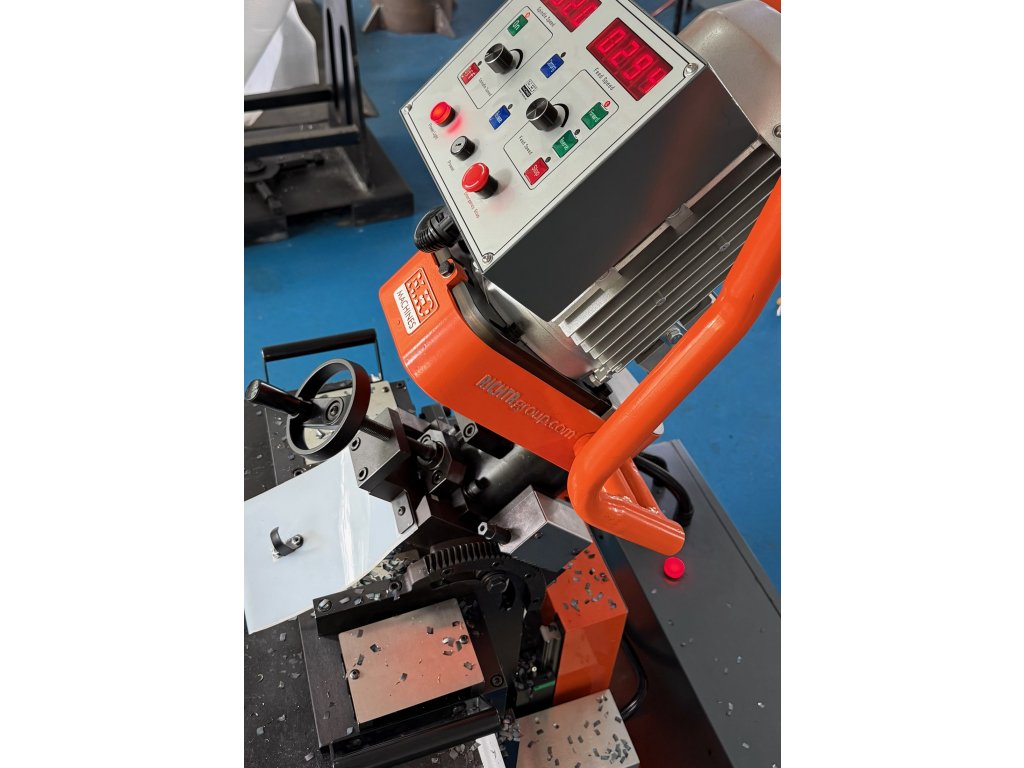

  • 2 built-in displays showing cutting conditions.
  • Possibility of adjusting the height of the machining unit according to the position of the workpiece.
  • Tool adjustment in three axes. Unique cross feed.



Technical date:

  • Maximal bevel width - 47mm / 1.87“
  • Bevel angle - 0° - 90°
  • Material thickness - 6 - 60mm / .23“ - 2.36“
  • Feeding speed - 0-1,4m/min (0 - 4.59 ft/min)
  • Motor power - 4 kW
  • Voltage - 400V / 50Hz. (220V /60Hz, 480V / 60Hz)
  • Weight - 245kg / 540lb



Art. Nr.: 4700

Weight 245 kg

UZ47 Skillmaster - Überraschend vielseitiger Fasenfräser


UZ47 Skillmaster - Überraschend vielseitiger Fasenfräser


UZ47 Skillmaster - Überraschend vielseitiger Fasenfräser


UZ47 Skillmaster - Überraschend vielseitiger Fasenfräser


UZ47 Skillmaster - Überraschend vielseitiger Fasenfräser


UZ47 Skillmaster - Überraschend vielseitiger Fasenfräser


UZ47 SKILLMASTER - Videoanleitung für Einrichtung und Verwendung
