Beveling machine UZ100 BOLD

Not rated


Maximum bevel width 100 mm with automatic feed

Availability Auf Anfrage
Price 21 418,81 € incl. VAT
17 999 € / pcs

Parameters

Product code 1000
Brand NKO MACHINES
Brand's website beveler.eu/
Category Bevelling machines
Warranty 2 years


Description

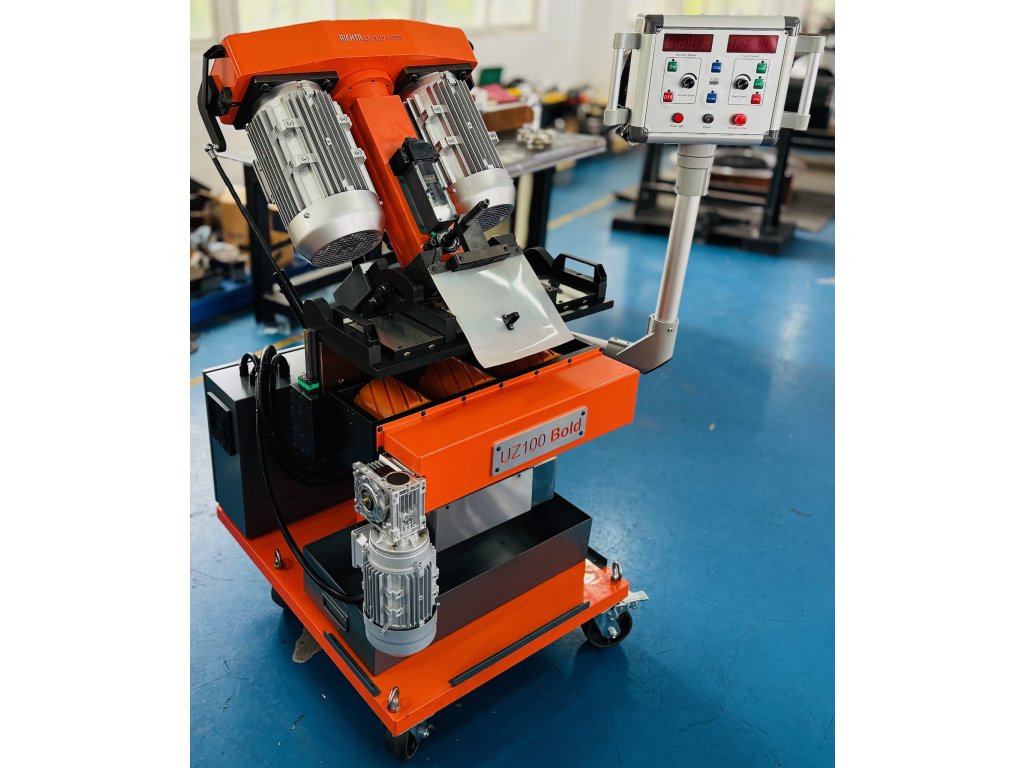

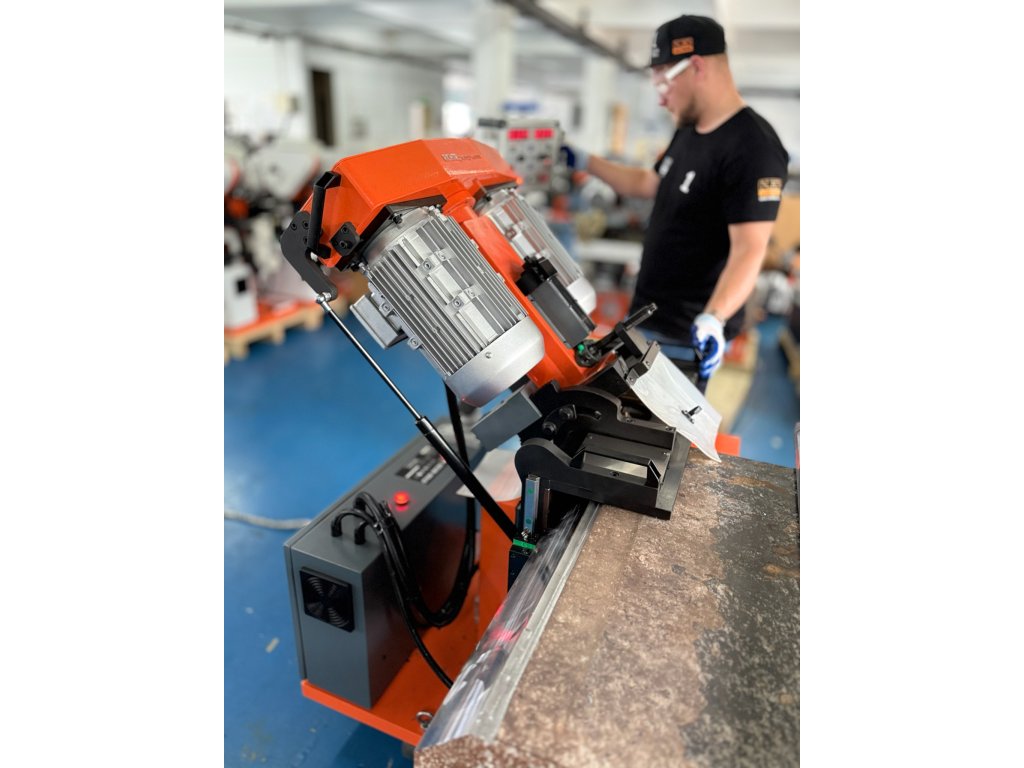

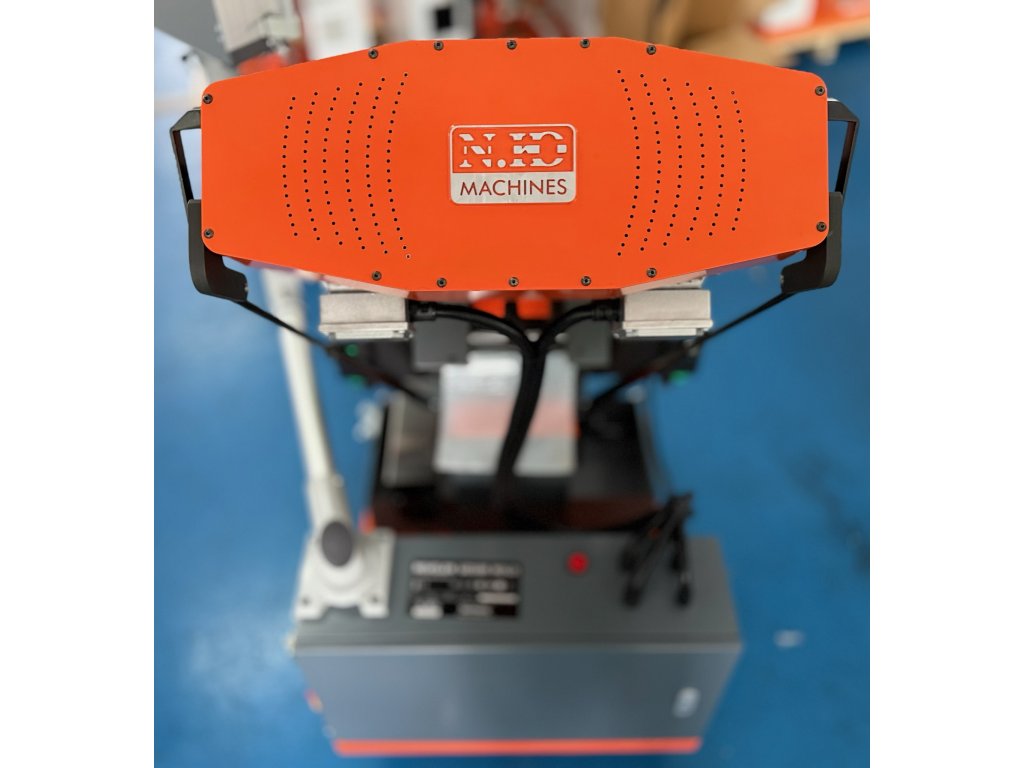

Bevelling machine UZ100 BOLD
- Maximum bevel width 30 mm
- With automatic feed

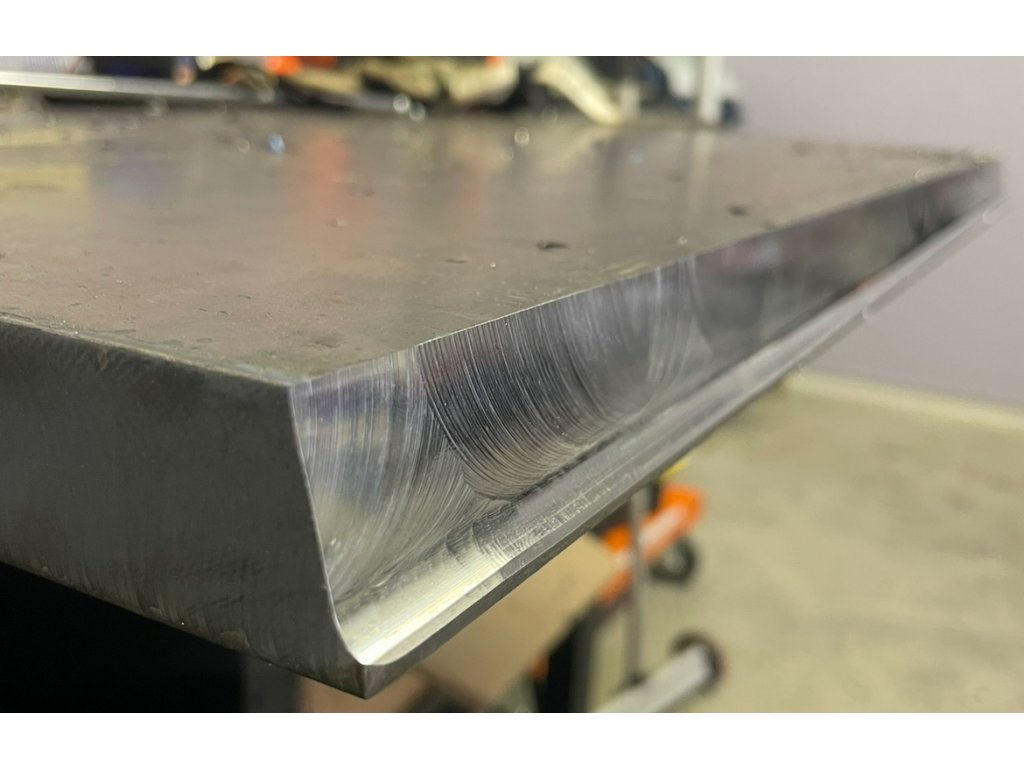

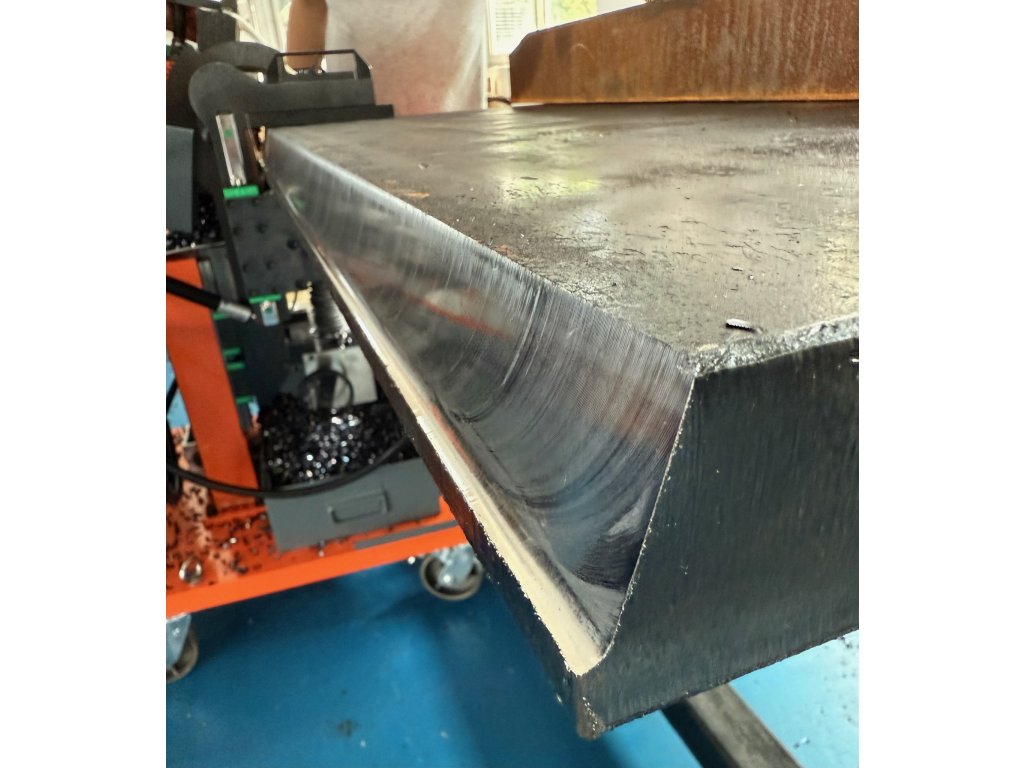

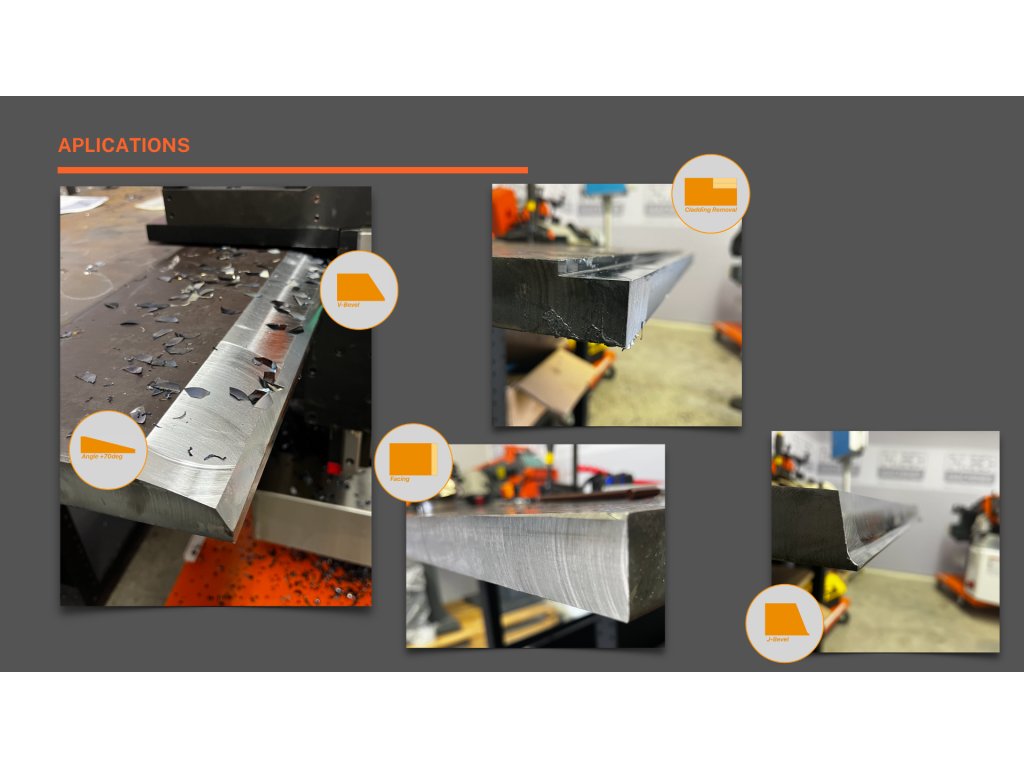

Unique multi-purpose bevelling machine with automatic feed for applications such as V-bevel, J-bevel, Cladding Removal, Facing and +70° chamfers.
Suitable for machining structural steels including higher strength steels, stainless steels and other harder to machine materials such as Hardox or Domex.

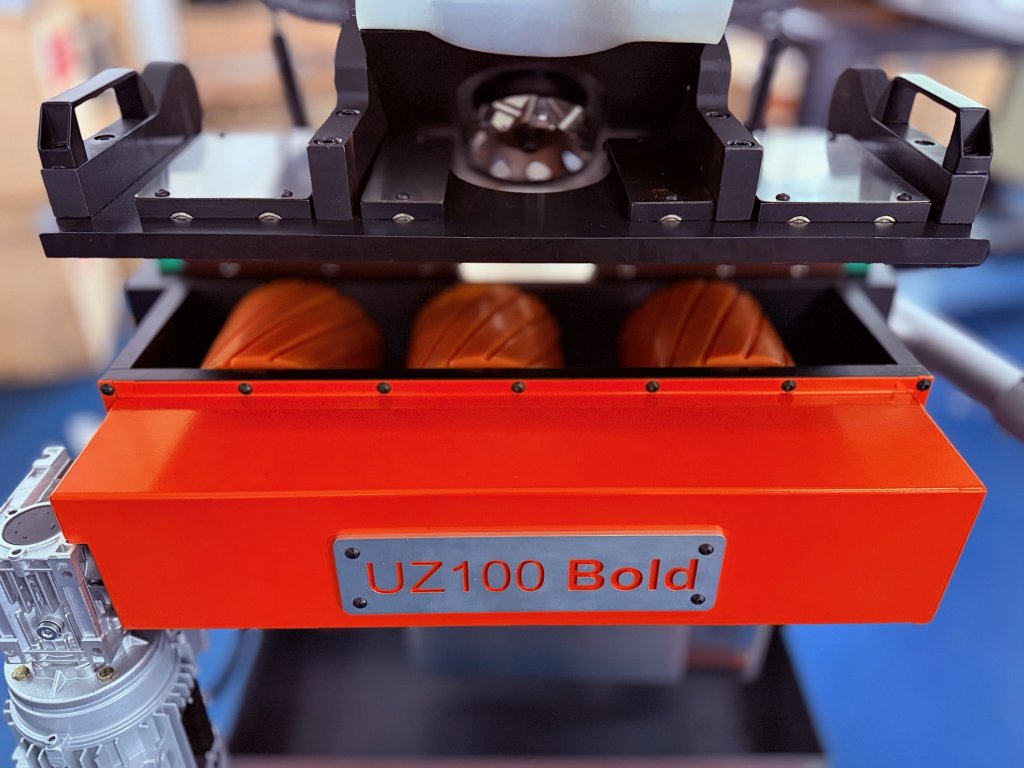

  • Automatic workpiece clamping system.
  • Infinitely adjustable tool speed.
  • Infinitely variable machine feed speed.

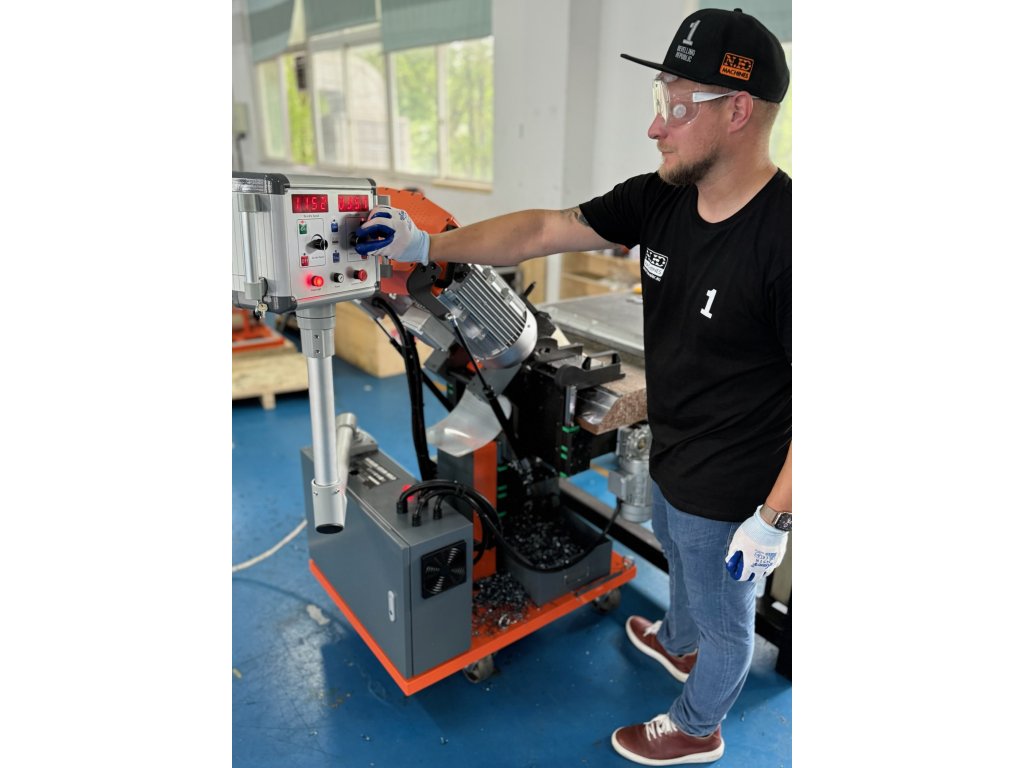

  • 2 built-in displays showing cutting conditions.
  • Possibility of adjusting the height of the machining unit according to the position of the workpiece.
  • Tool adjustment in three axes. Unique cross feed.



Technical data:

  • Maximal bevel width - 100mm / 3.93“

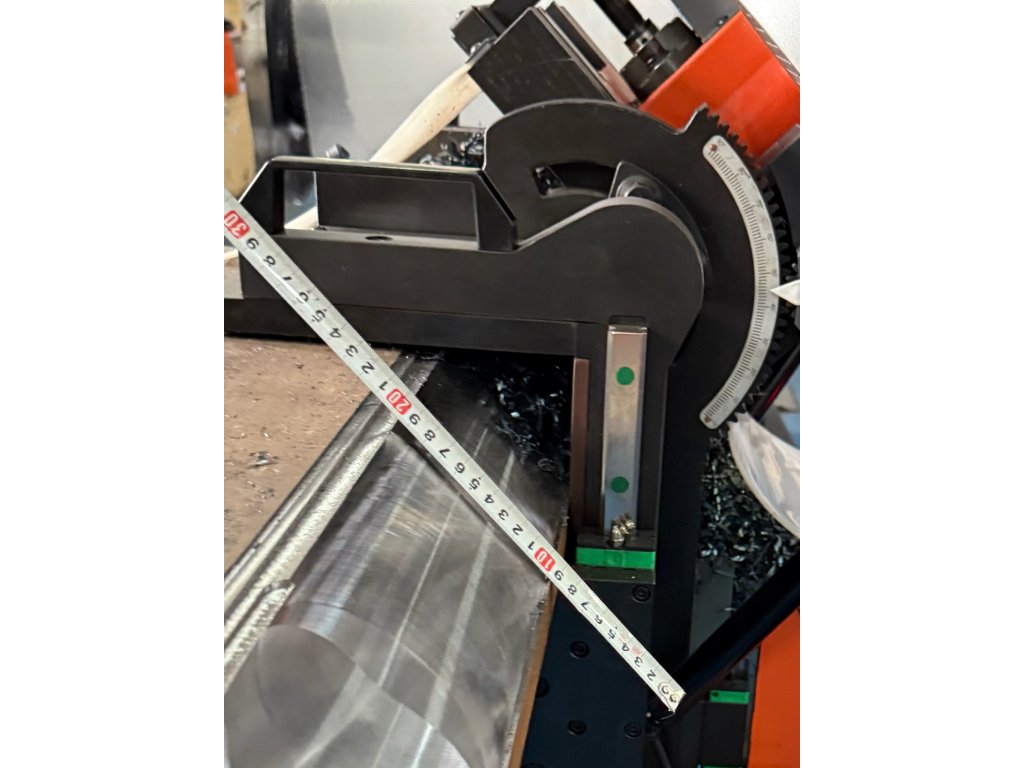

  • Bevel angle - 0° - 90°
  • Material thickness - 8 - 100mm / .31“ - 3.93“
  • Feeding speed - 0-1 m/min (0 - 3.28 ft/min)
  • Motor power - 4 kW
  • Voltage - 400V / 50Hz. (220V /60Hz, 480V / 60Hz)
  • Weight - 459kg / 1012lb



Art. Nr. 1000

Weight 459 kg

UZ100 Bold - Facing Anwendung


UZ100 Bold - Facing Anwendung


UZ100 Bold - Über das Übliche hinaus


UZ100 Bold - Über das Übliche hinaus
