Lifting Magnet TML 500

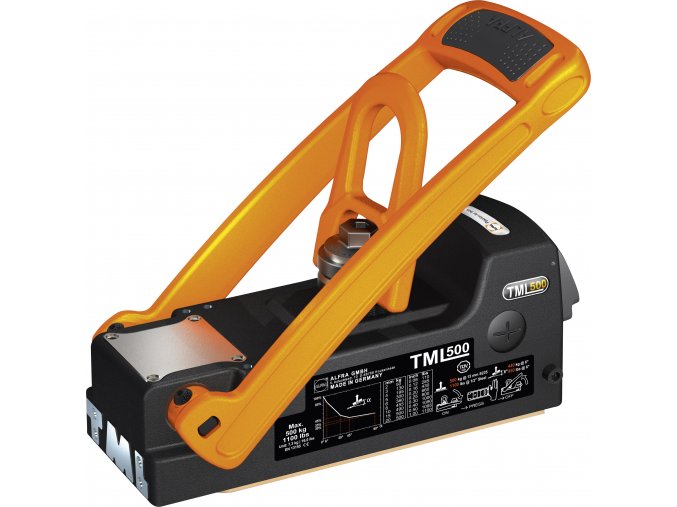

Lifting Magnet alfra TML 500

500 kg maximum load capacity with a tare weight of just 7.3 kg - the figures speak for themselves. But our TML 500 also has many other impressive advantages: As a member of the TML family (Thin Material Lifting), it develops impressive adhesive forces even on thin-walled materials thanks to patented magnet technology.

From a material thickness of 5 mm, the permanent magnet can lift loads weighing up to 300 kg; from 10 mm thick steel, the load capacity is around 490 kg.

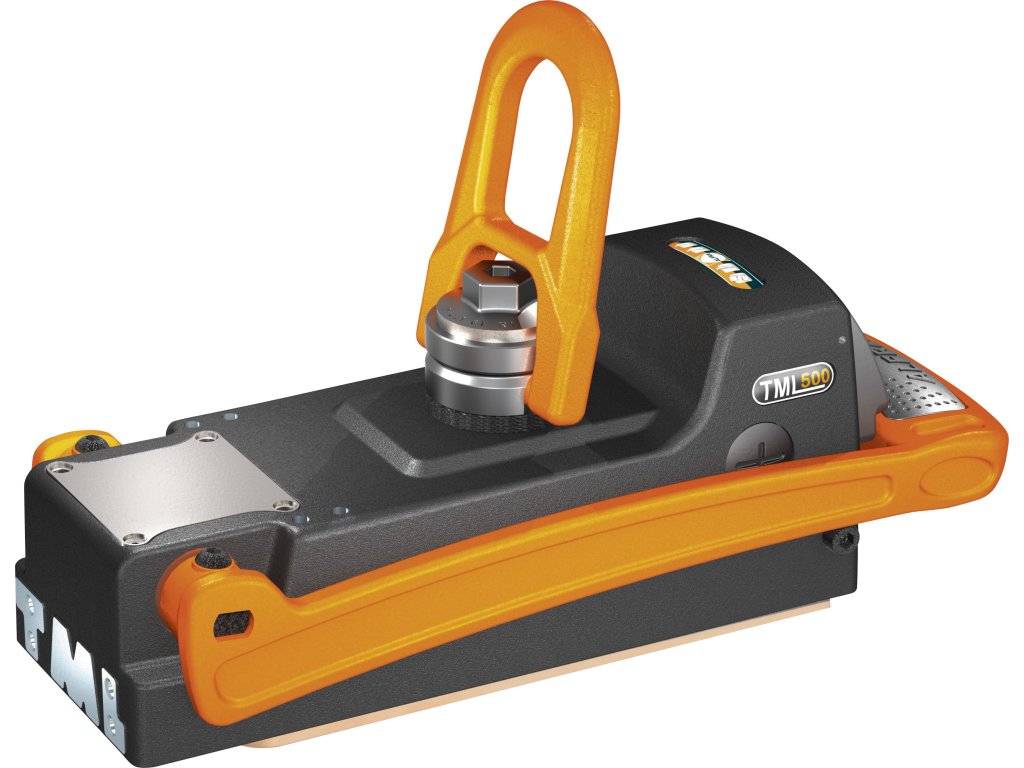

Flexibility is ensured by the 360° rotating load swivel, which creates a secure connection to your lifting or transport device using a hook with safety flap or a load sling.

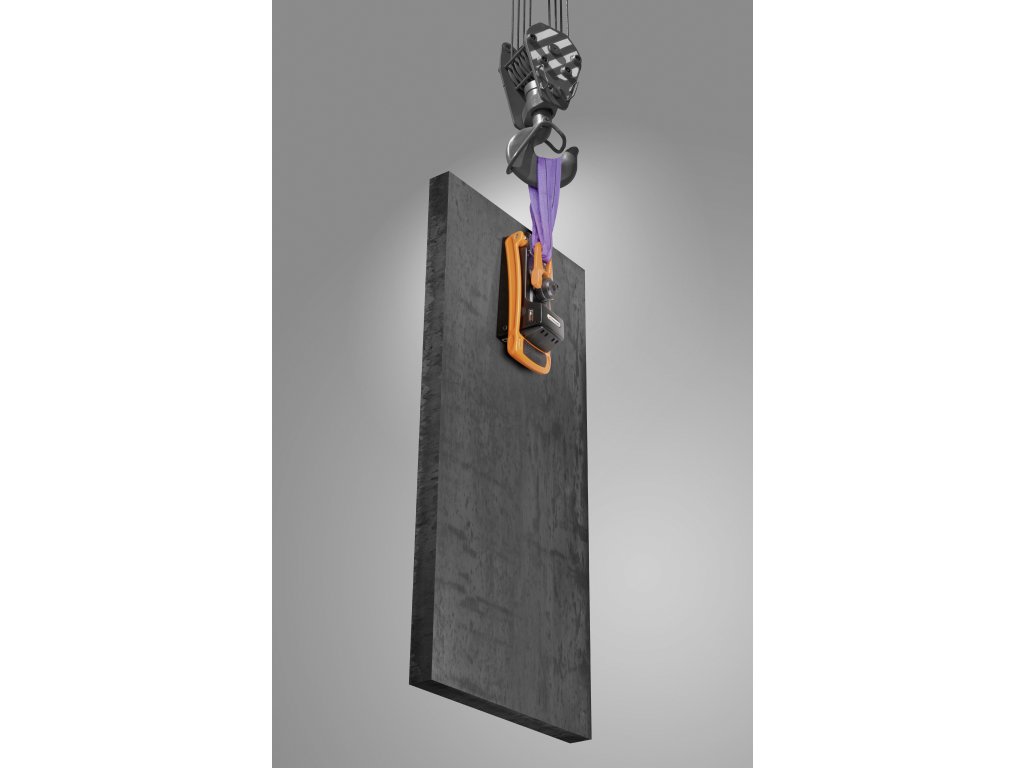

Move your metal sheets, metal plates or beams with a crane, overhead crane or wire rope hoist - you can rely on the TML 500!

We think along with you. That's why our magnets are precisely tailored to your daily processes - one example is the ergonomically shaped lever, which is aligned lengthways on the slimline housing.

The reason: this design allows the magnet to be activated even inside a T-beam.


The TML 500 will stay with you for a long time because the TiN coating on the magnetic surface is extremely robust and resistant to damage.

Technical details:

• Max. load-bearing capacity: 500 kg
• Breakaway force: > 1.500 kg ab 15 mm Stahl S235
• Min. material thickness: 2 mm
• Dead weight: 7,3 kg

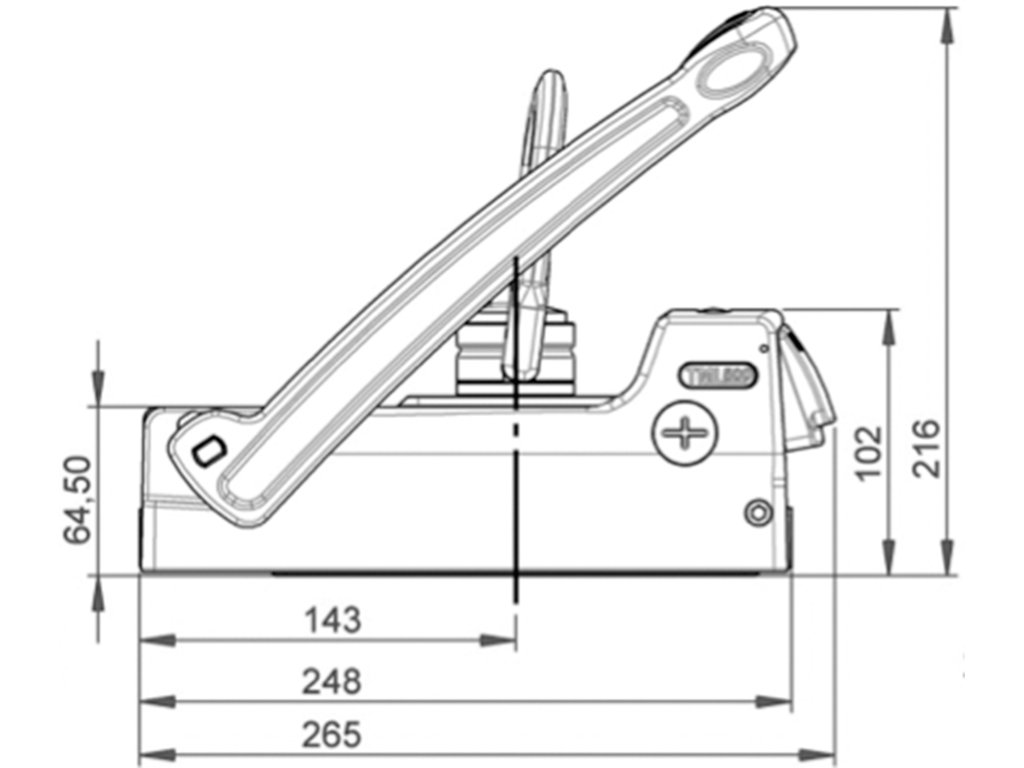

• Dimensions LxW: 265 x 118 mm

Art. Nr.: 41500
