Bevelling system UZ12 ULTRALIGHT - set (KIT 22,5° + 30° + 37,5° + 45° + 50° + pipe bevelling tool)

10 ratings


Maximum bevel width 12 mm with automatic feed

Availability auf Lager (>5 pcs)
Price 5 922,63 € incl. VAT
4 977 € / pcs

Parameters

Product code 1918
Brand NKO MACHINES
Brand's website beveler.eu/
Category Bevelling machines
Warranty 5 Jahre


Description

Bevelling system UZ12 ULTRALIGHT
- Maximum bevel width 12 mm
- with automatic feed

+ KIT 22,5° + 30° + 37,5° + 45° + 50° + pipe bevelling tool

The UZ12 ULTRALIGHT is one of the lightest bevelling machines with the automatic feed in the market.
Thanks to its compact size and low weight it is perfect not only for workshops but also for assemblies.
The machine is equipped with the automatic feed. Working with UZ12 ULTRALIGHT is therefore very comfortable.
The quietest bevelling system on the market.



  • For conventional steel (up to strength of 600 MPA / 87 022 PSI), stainless steel, brass, copper and aluminium materials.
  • For bevelling material with minimum dimensions - width 65 mm / 2.56 in, length 60 mm / 2.36 in, thickness 3 mm / 0.12in.
  • Thickness of bevelled material 3 - 35 mm / 0.12 - 1.37 in.
  • Bevelling of pipes from the internal Ø 95 mm / 3.74 in.
  • The bevel angle can be changed using replaceable arms (KIT for a given angle).
  • The device is capable of performing double-sided bevel (X, K) without the need for material handling.
  • Suprisingly silent drive.
  • The machine is equipped with an automatic feed.
  • Possibility of stationary and mobile use.
  • The machine works on large workpieces without support at a speed of 1.8 m/min / 5.9 ft/min.
  • Smaller parts of the material are inserted directly into the machine.
  • Lightweight and compact design. One-man machine.
  • Thermal protection of the motor



Technical data:

  • Max. bevel width: 12 mm / 0.47 in
  • Bevel angle: 30°, 45°, 22.5°, 37.5°, 50° (replaceable KIT)
  • Thickness of bevel. material: 3 - 35 mm / 0.12 - 1.37 in
  • Engine: 400 W
  • Feed: 1,8 m/min. / 5.9 ft/min.
  • Weight: 30 kg / 66 lb

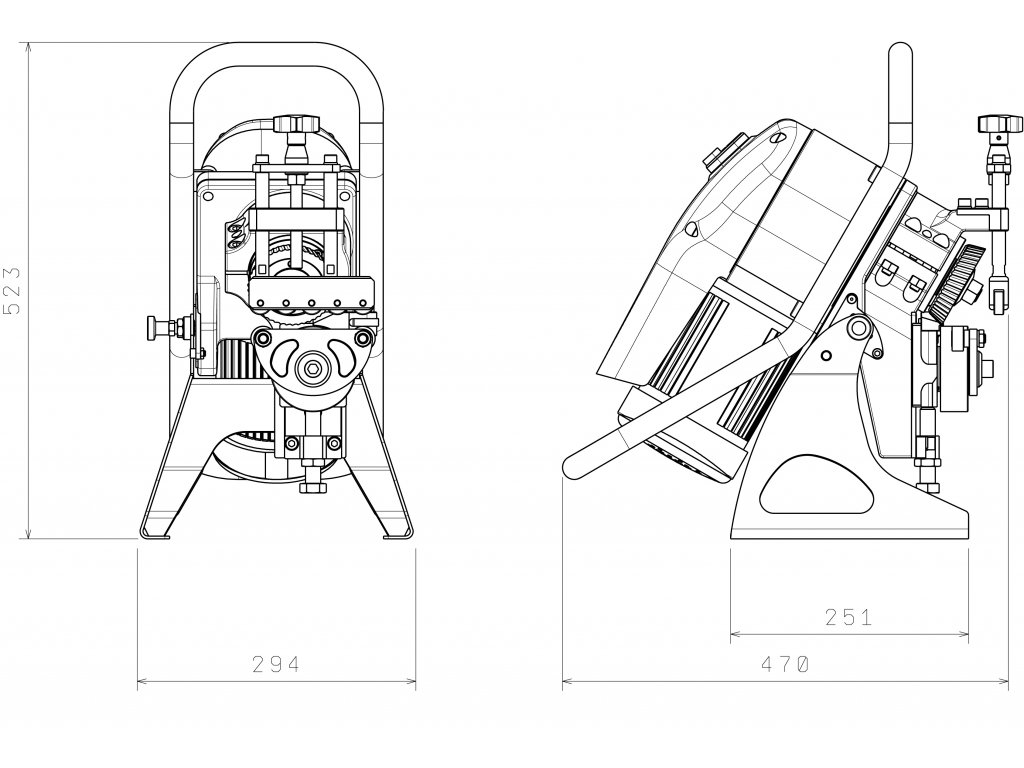

  • Dimensions: 470 x 294 x 523 mm / 18.5 x 11.57 x 20.59 in



Included in price:
Bevelling system UZ 12 ULTRALIGHT
Tools for an operator.
Packet in a wooden crate.
User manual.



Art. Nr.:  1918



Alternative products

Weight 44 kg
Gewicht: (?) 30 kg
Max. Fasenbreite (Hypotenuse): 12 mm
Fasenwinkel: 30° / 45° / 22,5° / 37,5° / 50° (austauschbares KIT)
Einsatzbereich Blechstärke: 3 – 35 mm
Motor: 400 W
Vorschubgeschwindigkeit: 1,8 m/min
Abmessung: 470 x 294 x 523 mm
