Bevelling system B22 ZERO
Description

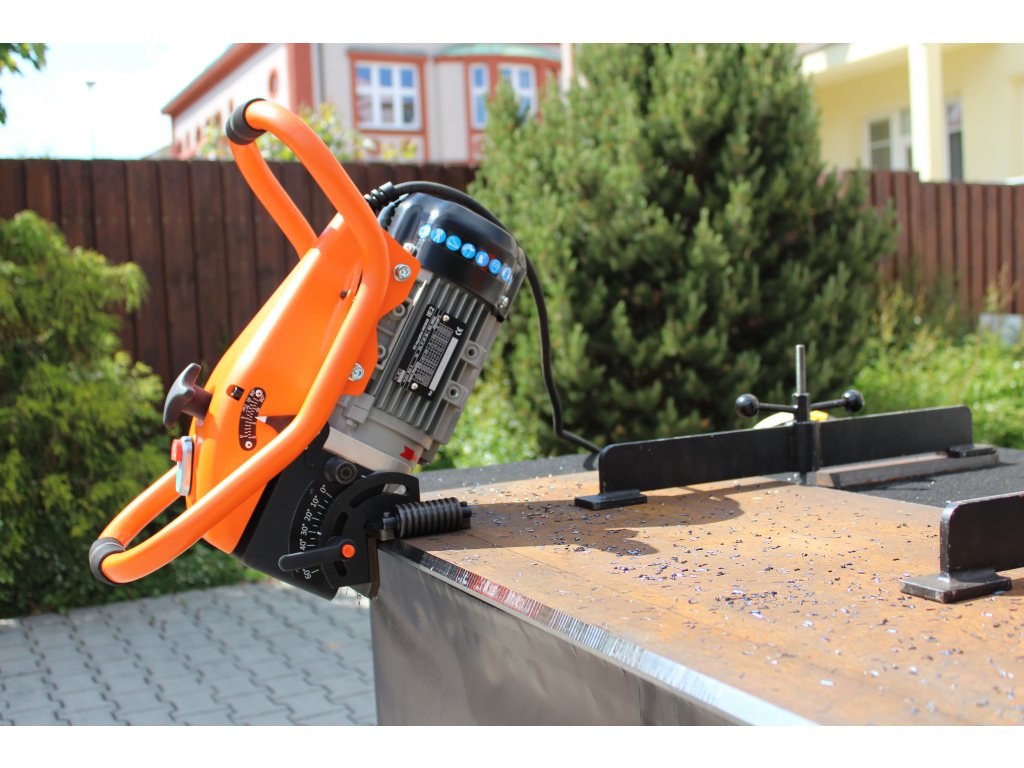

Bevelling machine B22 ZERO
- Maximum bevel width 20 mm
- Front-end machining
Designed for bevelling and deburring straight edges, for the so-called FACING - removing an unwanted layer of materials on the workpiece edge resulting from cutting the metal sheet by burning.
Specially designed for the production of visual bevels and welding preparation.
Powerful electric drive for extreme loads.
- High-performance motor
- The possibility of continuous adjustment of the working angle in the range of 0° - 60°
- FACING - edge processing at an angle of 0° to remove unwanted material layer after burning cutting
- The unique scaling mechanism of the bevel size for increased precision
- A very compact and ergonomic design for high labor productivity
- All-round frame for damage protection and for grip options
- With the appropriate equipment, pipes and tubes can be bevelled from Ø 150 mm / 5.9 in
- Additional adjustable handle
- Packed in a cardboard box
Technical data:
- Bevel angle: continuously adjustable between 0° - 60°
- Bevel width: 0 to 20 mm / 0 to 0.79 in < 400 MPa / 58 015 PSI (0 to 16 mm / 0 to 0.63 in > 400 MPa / 58 015 PSI)
- Motor: 1100 W
- Speed: 2850 rpm
- Weight: 19,5 kg / 43 lb

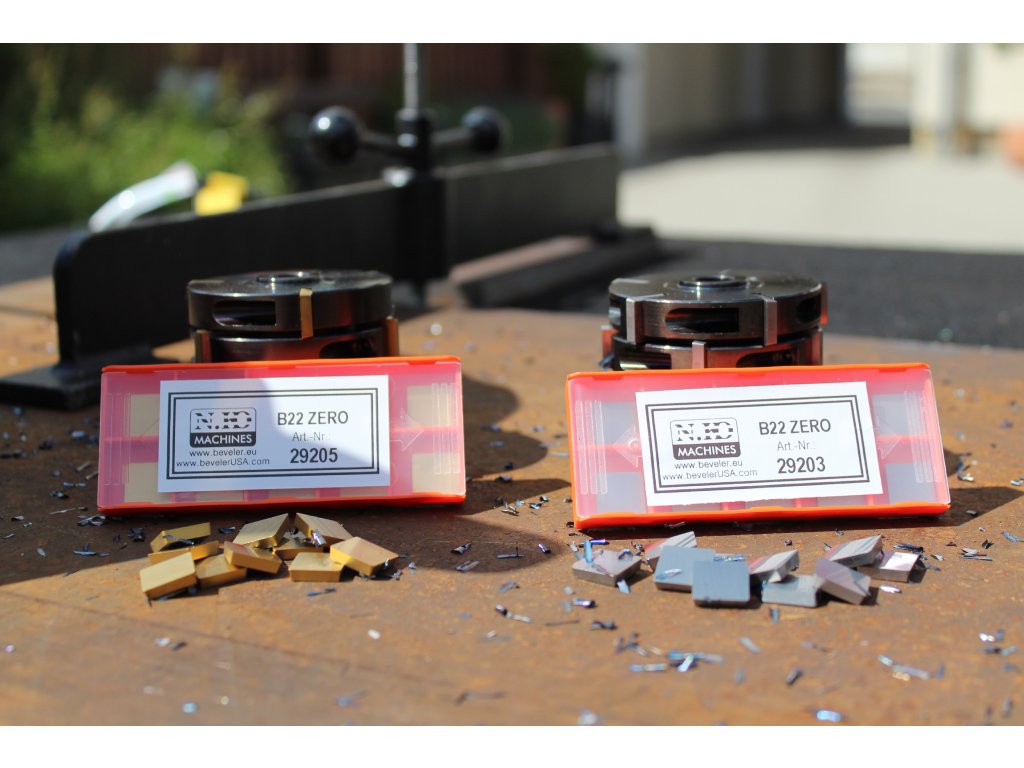

- Number of indexable inserts: 10 pieces
Included in price:
- Bevelling and deburring system B22 ZERO.
- Tools for an operator.
- User manual.
Art. Nr.: 29220
Related products
-
Code: 29201
-
Code: 29204
-
Code: 29206
-
Code: 29200.9300
-
Code: 18654
-
Code: NMF0107
| Weight | 23 kg |
| Gewicht: (?) | 19,5 kg |
| Fasenwinkel: | stufenlos einstellbar zwischen 0° - 60° |
| Fasenbreite (Hypotenuse): | 0 - 20 mm ≤ 400 Mpa / 0 - 16 mm ≥ 400 Mpa |
| Motor: | 1100 W |
| Drehzahl: | 2850 rpm |
| Anzahl der Wendeschneidpaltten: | 10 Stück |
