Bevelling and deburring system B15 ELECTRA + Xpipe Beveler + Motor FEIN made in Germany

Bevelling and deburring system B15 ELECTRA

- Maximum bevel width 15 mm

- Edge rounding

Designed for bevelling and deburring workpieces, internal and external radiuses and holes. Edge rounding function.
Specially designed for producing bevels and welding preparation.
Powerful electric drive for extreme loads.
Over the years, the B15 Electra has become a real benchmark in its field. The new generation of this machine sets even higher standards for modern production.
The new upgraded B15 Electra is equipped with the complete new generation of the motor, featuring patented dust protection for extended durability.
This motor ensures long-lasting performance even in demanding conditions.
The B15 Electra is engineered to provide unparalleled power, safety, and user comfort, making it the ideal choice for professionals seeking reliability and performance in their bevelling task.

• Scale for accurate bevel size adjustment.
• For bevelling and deburring steel, aluminium and other materials.
• Replaceable head for changing bevel angle.
• Handheld powerful equipment.
• Swivelling ergonomic handle.
• Edge rounding function, preparation before surface treatment.

Key Features:

• Electronic Safety Shutoff: Reduces kickback when the milling head jams, providing superior user protection.
• Rotatable Main Handle: The main handle can rotate, and the auxiliary handle can be mounted in 3 positions for optimal grip during bevelling tasks.
• Soft Start with Inrush Current Limiter: Prevents tripping circuit breakers when the machine starts, ensuring smooth operation.
• Electronic Overload Protection: Protects the machine from overheating, while a restart protection feature prevents accidental restarts.
• New German, more powerful and super reliable motor.
• Anti-vibration system: Integrated damping system and auxiliary handle reduce vibrations, protecting user health.
• Safety Switch: The new safety switch prevents unintentional startup.
• Automatic Motor Shutoff: The machine automatically turns off when the carbon brushes wear out, safeguarding the motor.
• LED Indicator: Displays the status of restart protection or overheating.

Technical data:

• Max. bevel width: 0 to 15 mm / 0 to 0.6 in < 400 MPa / 58 015 PSI, 0 to 8 mm / 0 to 0.3 in > 400 MPa / 58 015 PSI

• Bevel angle: replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand

• Rounding Radius: R 2,5 mm / R 3,5 mm / R 4 mm, R 0.1 in / R 0.14 in / R 0.16 in

• Motor: 2.600 W (230V) / 15 AMPS (120V)
• Speed: 6.600 RPM
• Feeding: manual
• Weight: 9,5 kg / 20.9 lb

Included in the price:

• Beveling system B15 ELECTRA without milling head
• Packet in a cardboard
• Operating tools

Art. Nr.:  25250

________________________________________________________________________________________

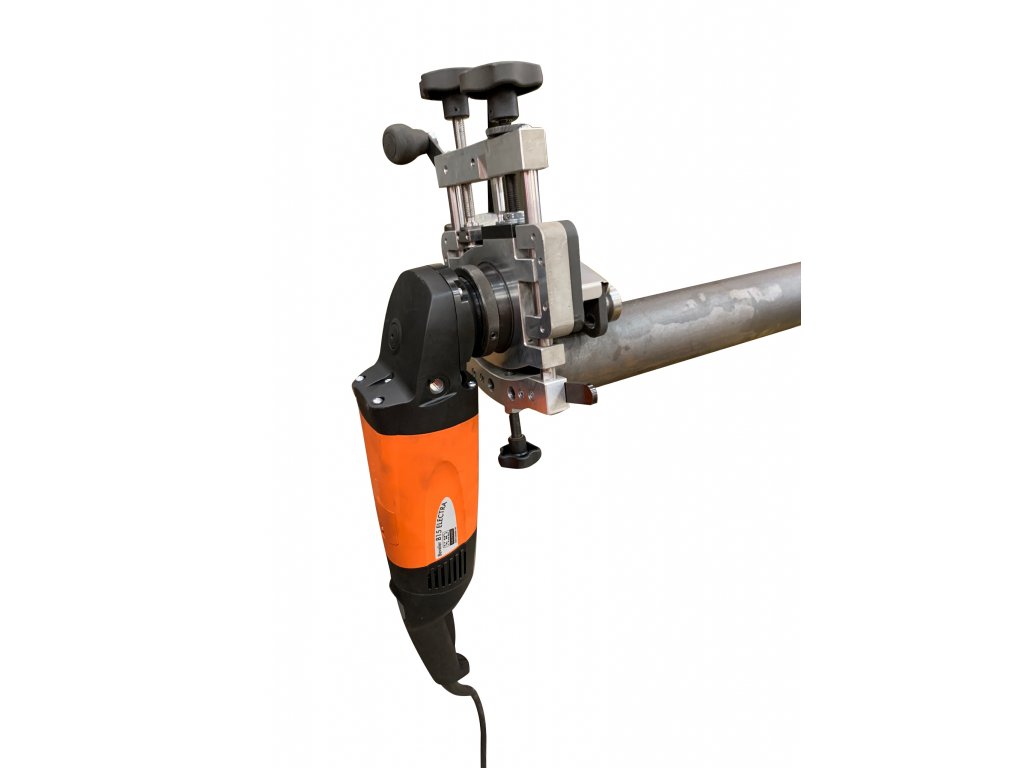

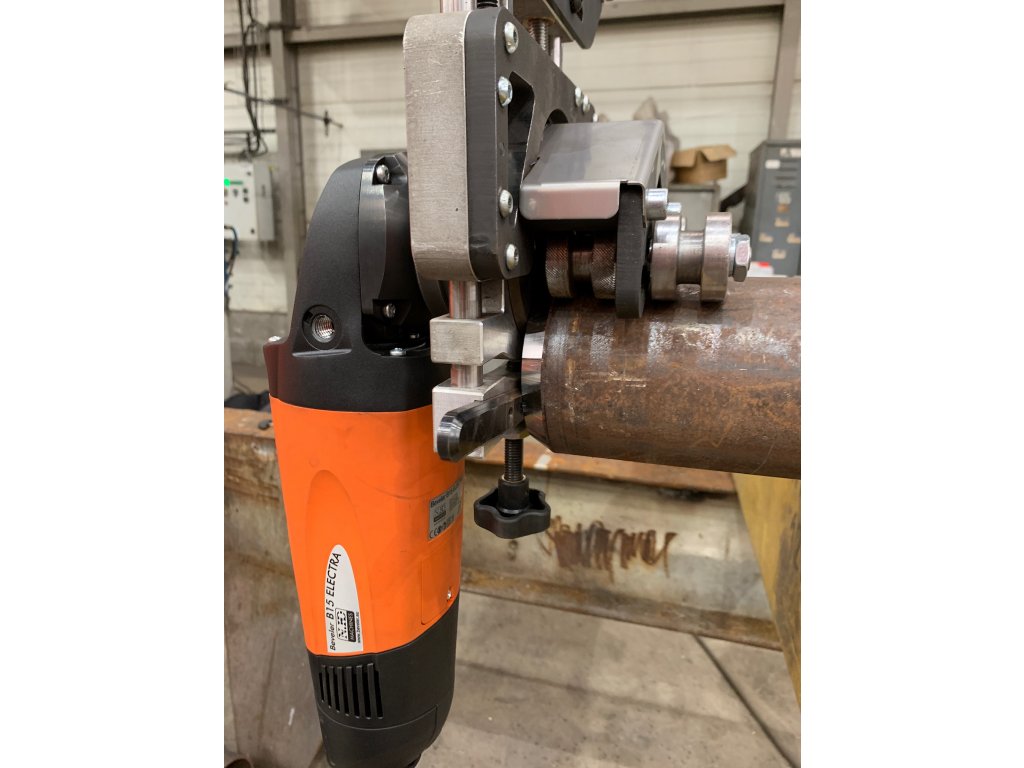

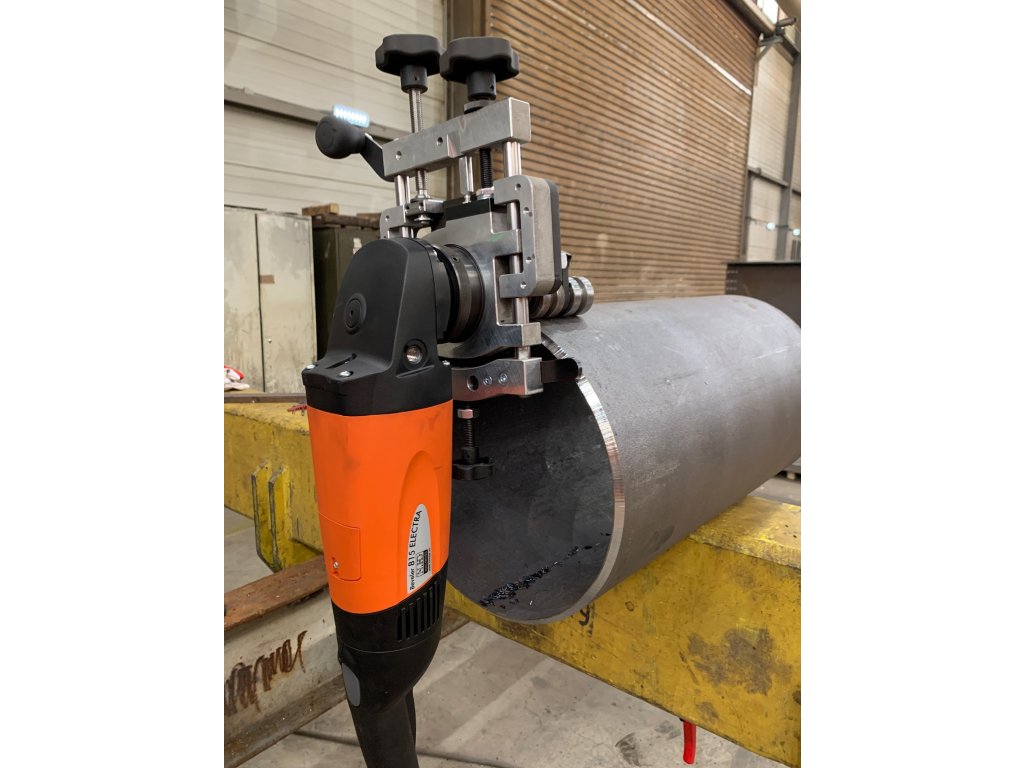

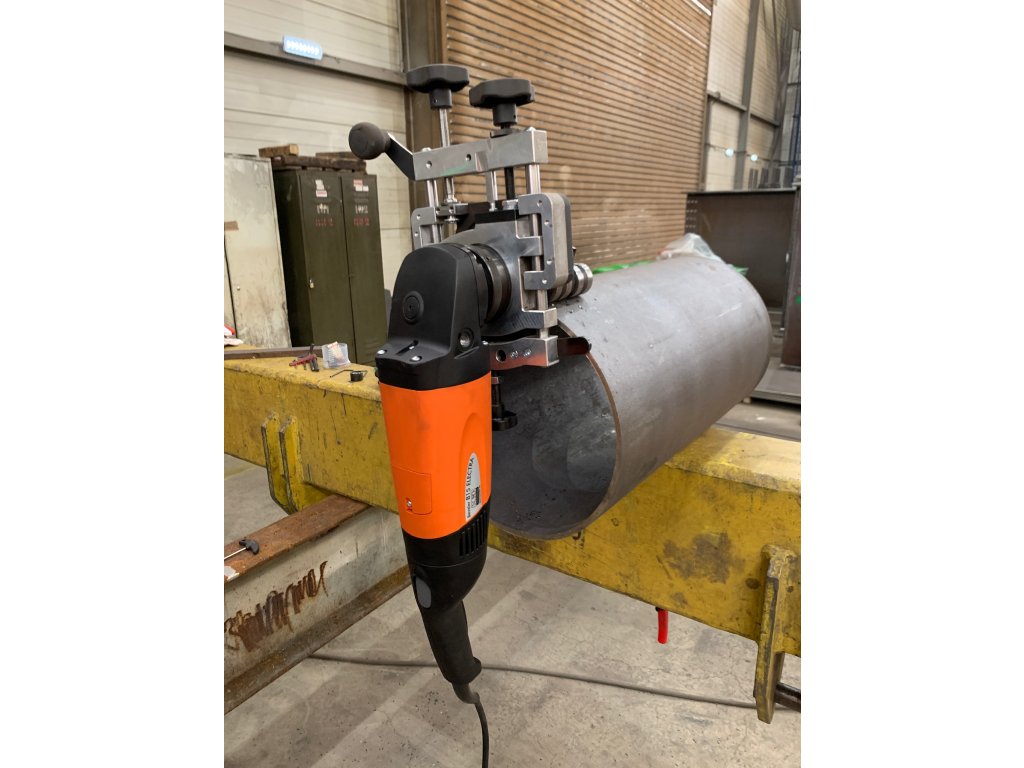

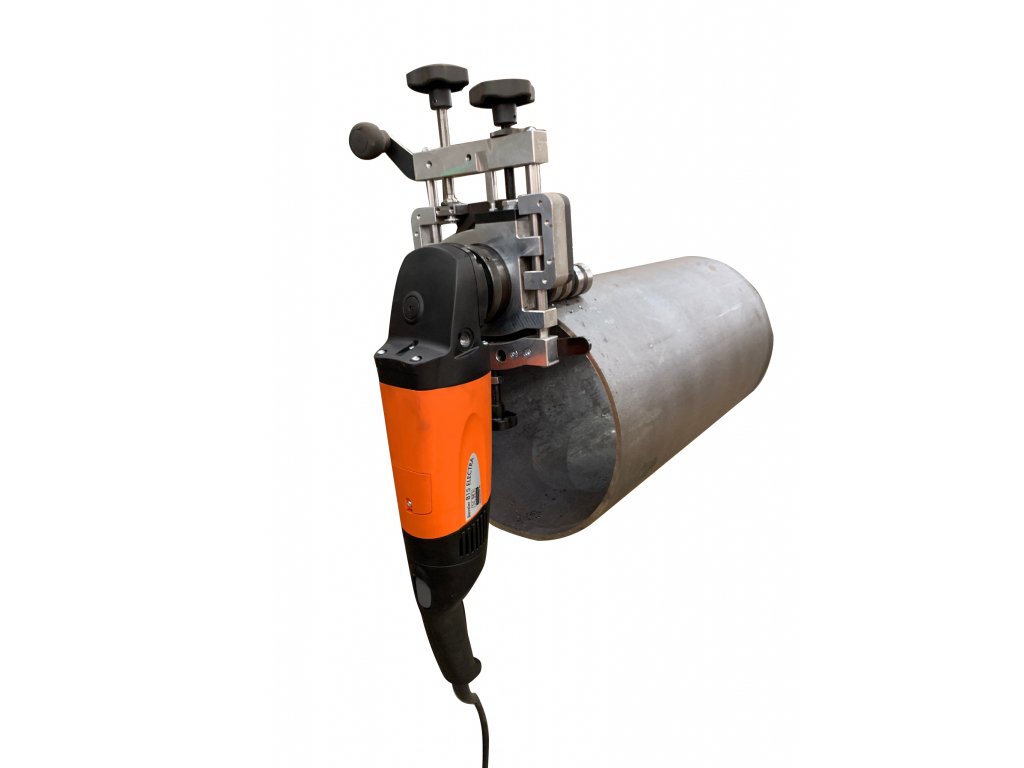

Xpipe Beveler (accessory for B-Line machines)

- Maximum bevel width of 10 mm

- Compatible with B10 ELECTRA, B15 ELECTRA, and B15 AIR

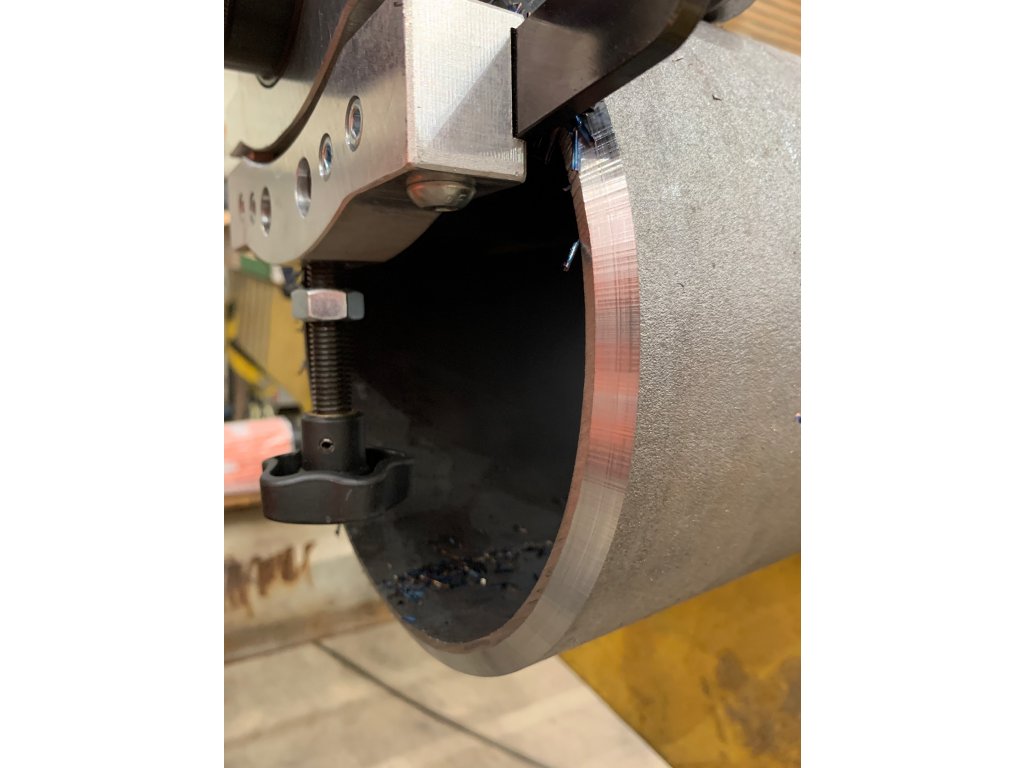

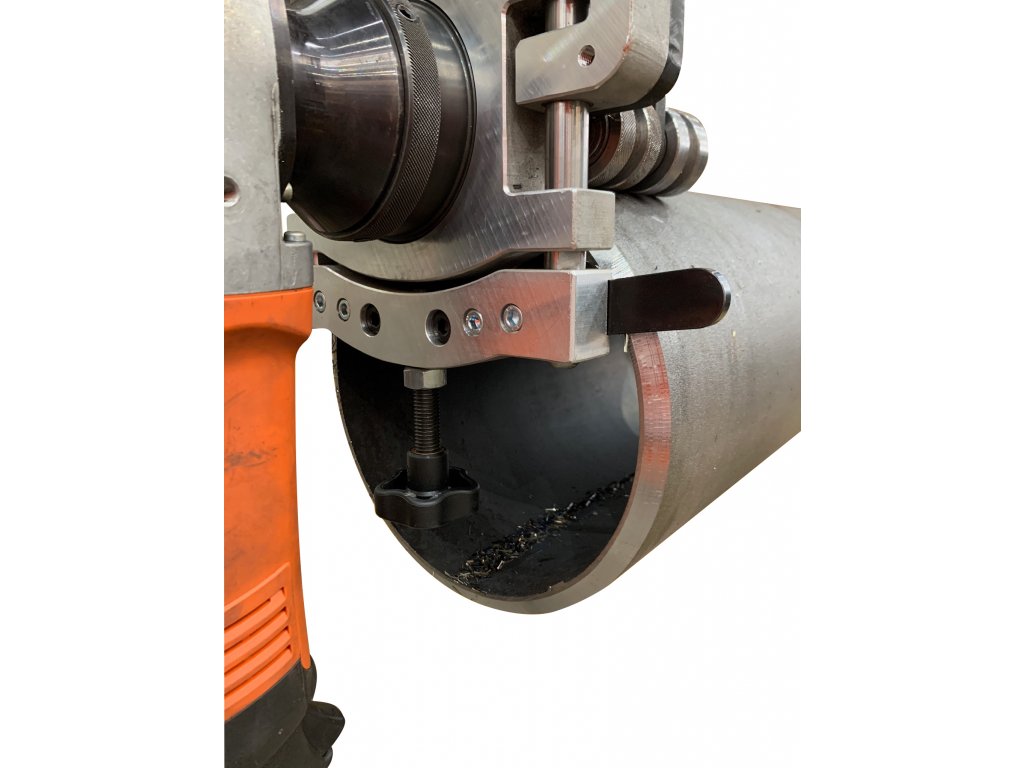

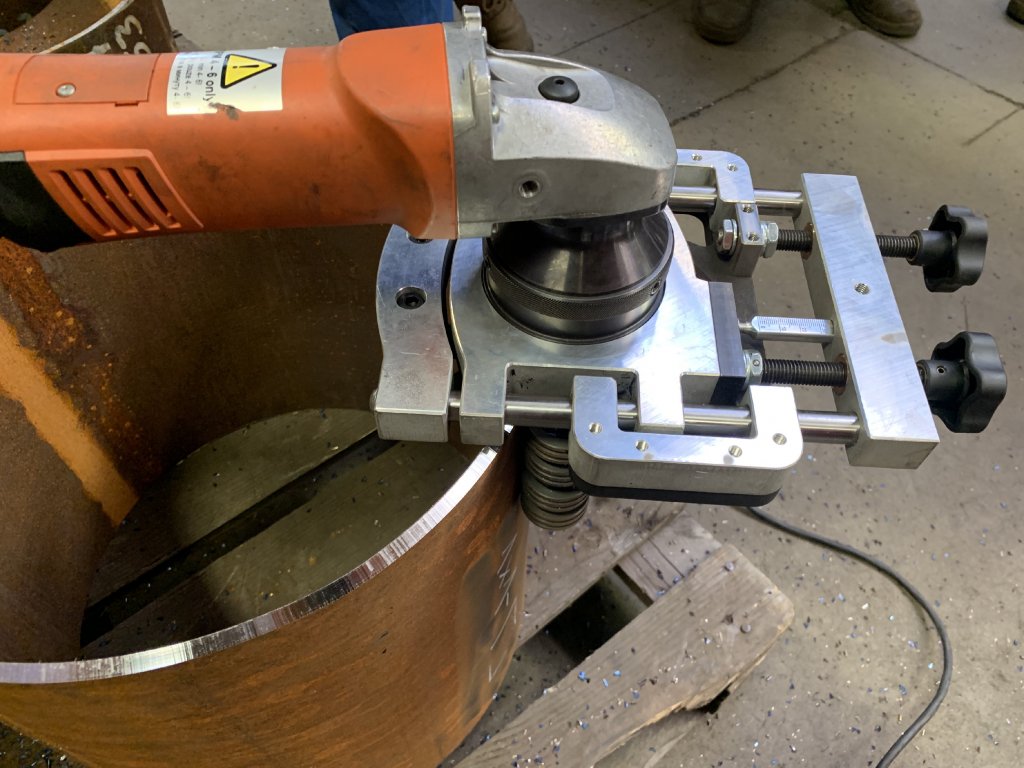

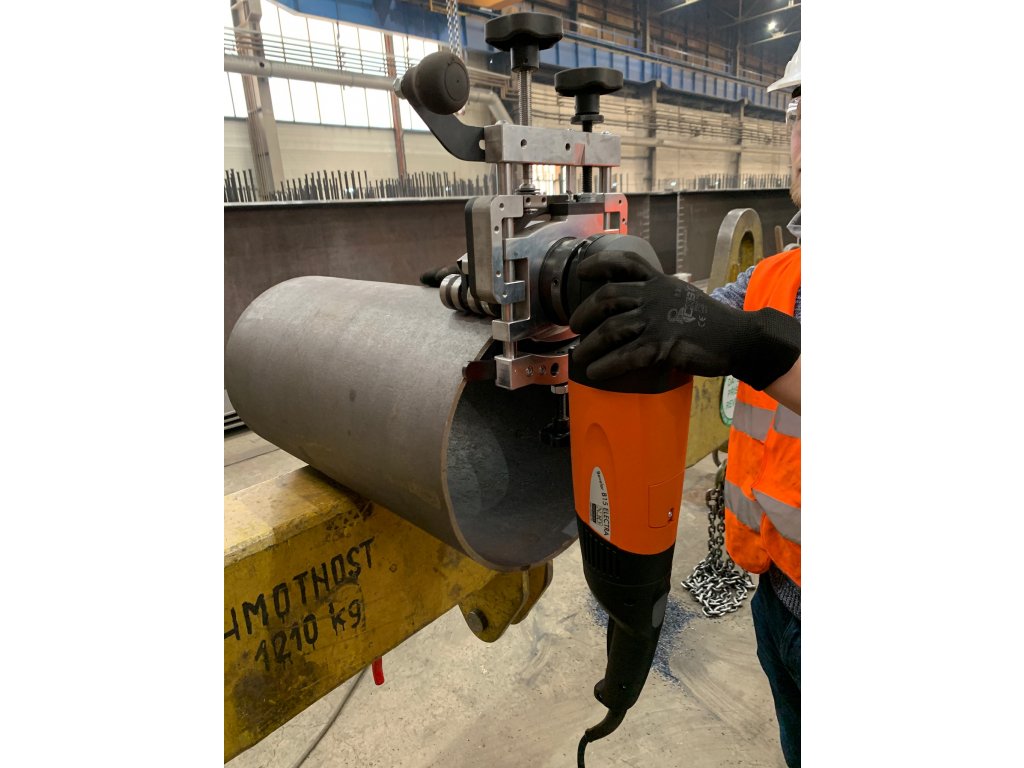

Bevelling tool for easy and fast machining of pipes from Ø 85 mm (3.36“).
The maximum diameter of the pipe is not limited, and the tool can be used on flat materials.

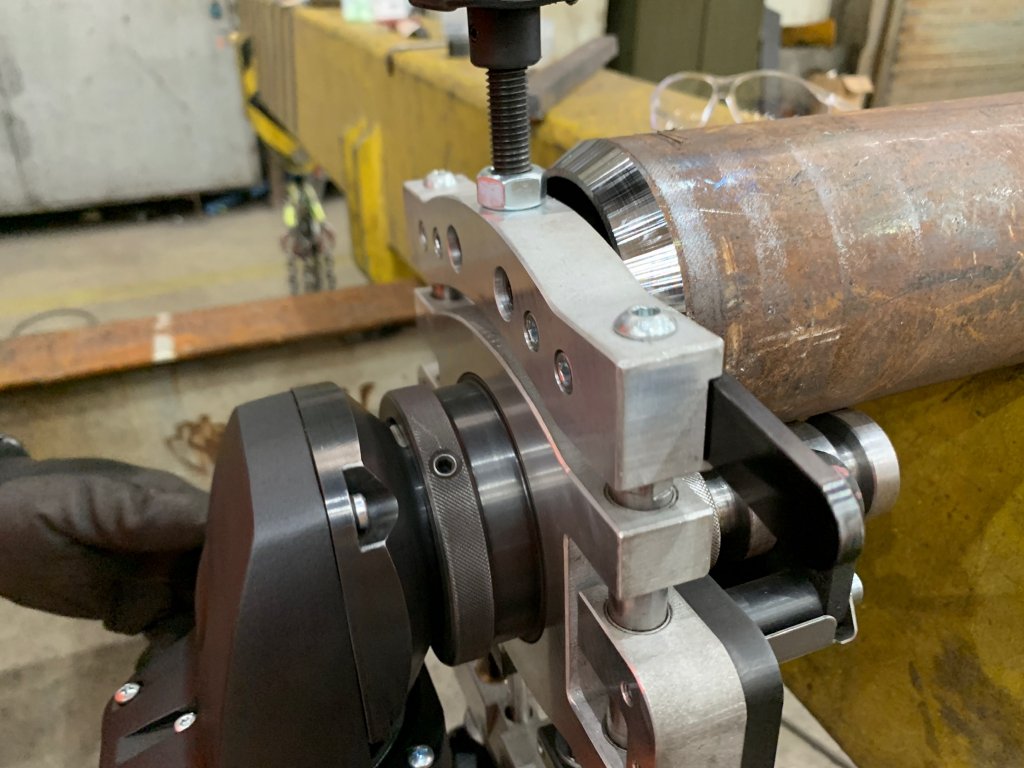

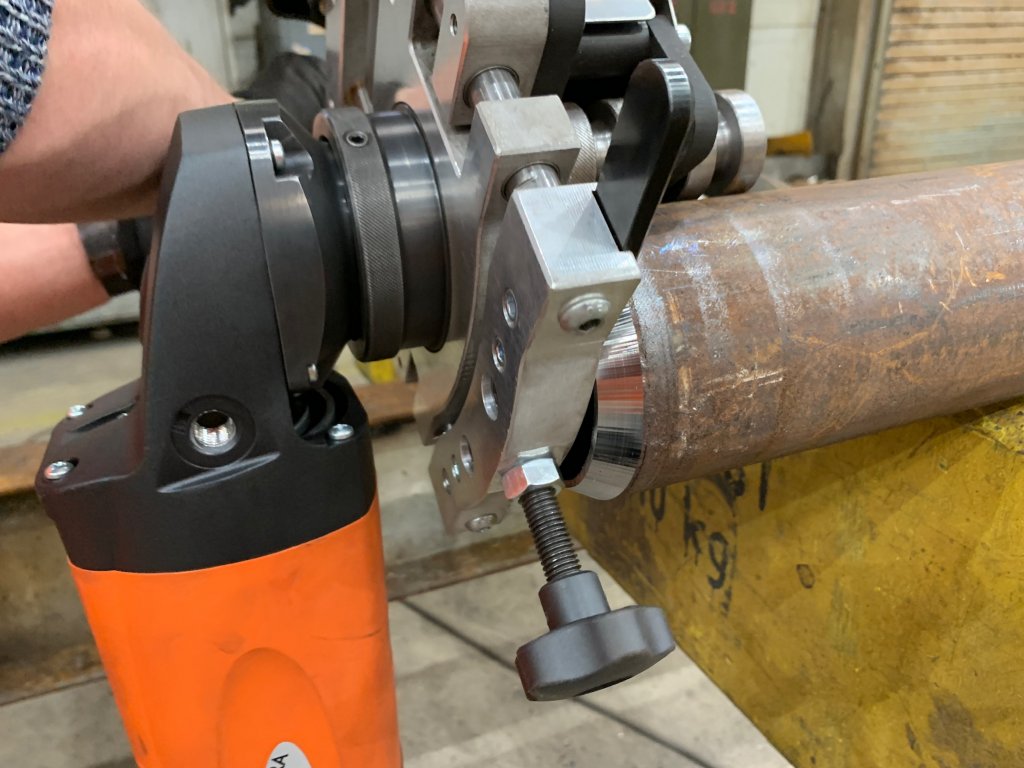

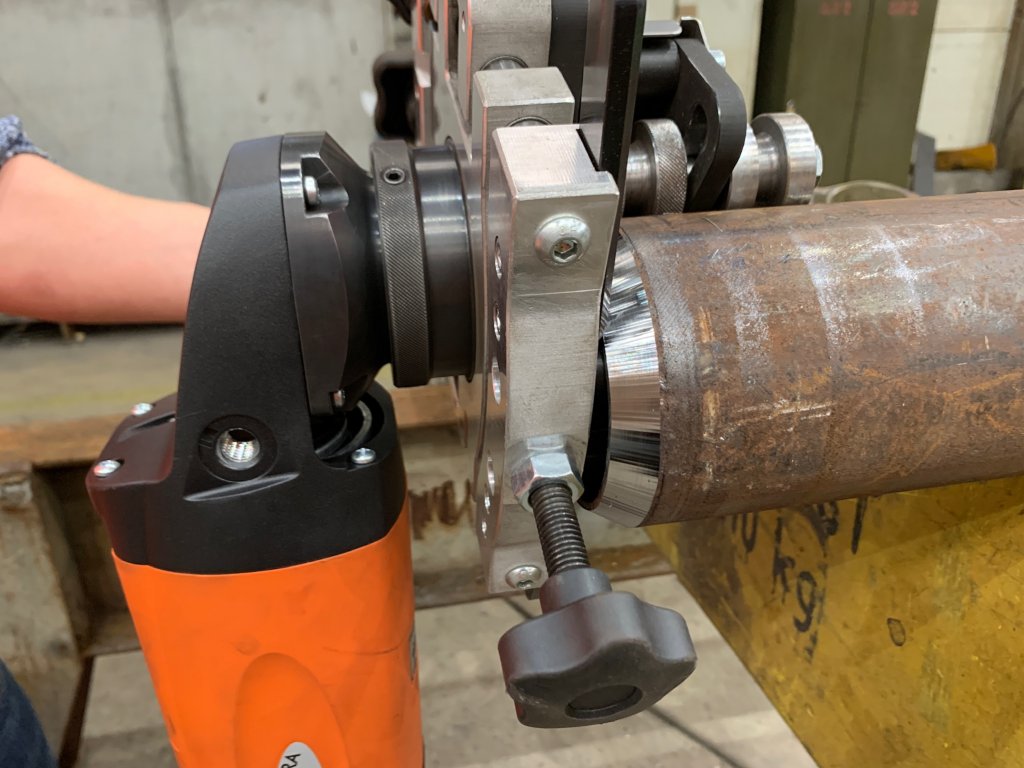

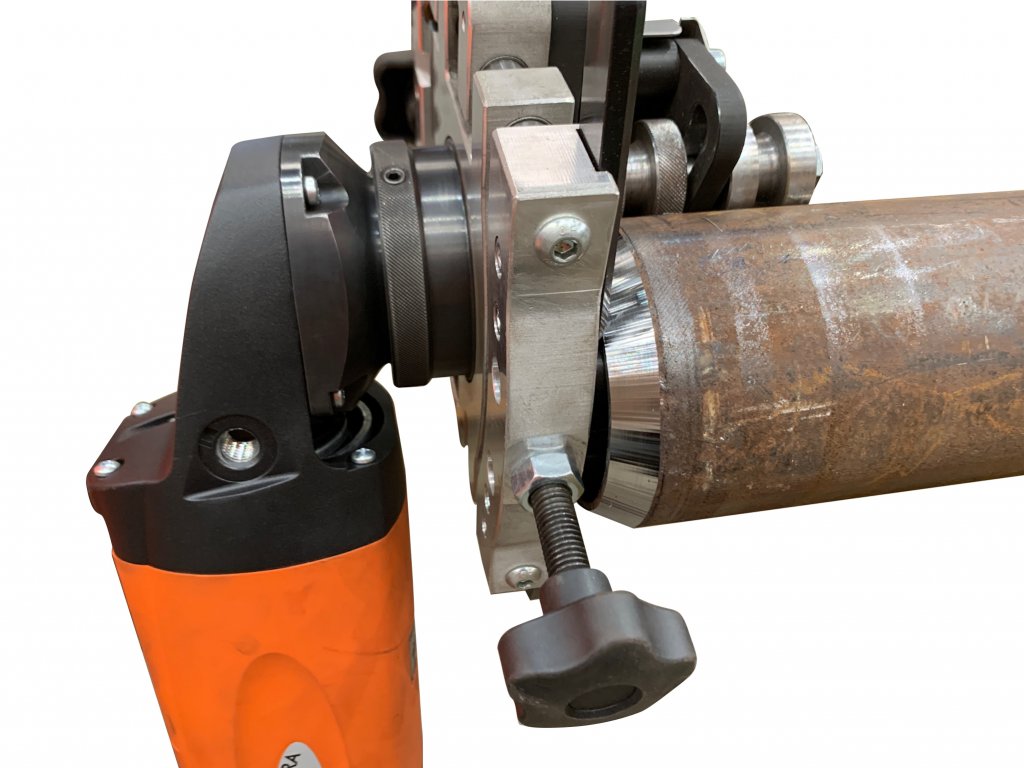

The unique mechanism of clamping, guiding rollers ensures precise and comfortable guiding around the circumference of the machined pipe or along the edge of the sheet metal.
The robust frame of the body of the tool guarantees constant cut with a minimum of possible vibrations and uncompromising stability of the selected bevel angle.

• This tool is designed to work with B10 Electra, B15 Electra and B15 AIR bevelling machine.
• The bevel depth can be set continuously, and the values read on the built-in scale.
• Special one-way bearings for the roller shutters prevent any kickback when approaching the material, ensuring truly safe and comfortable beveling process.
• The set removal value can be ensured, and a constant chamfer depth can be guaranteed even on a larger number of pipes.

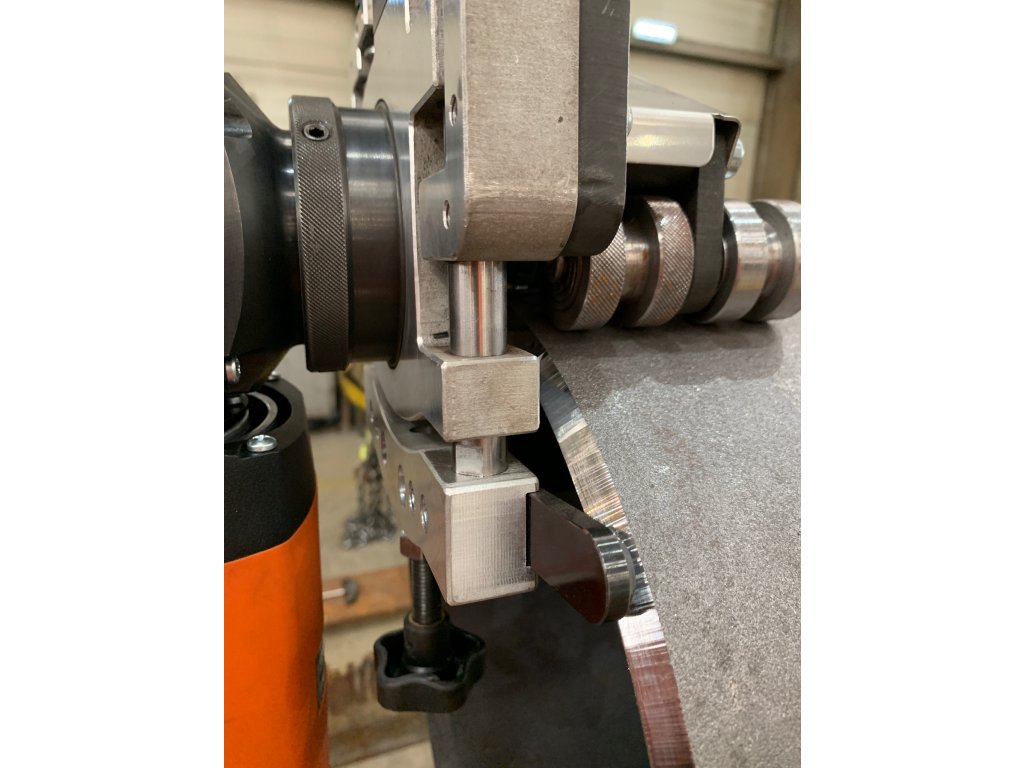

• Thanks to the unique, flexible mounting of the running rollers, the tool can also handle any unevenness and inaccuracies around the circumference of the pipe
• Lightweight aluminum construction of the machine frame guarantees comfortable handling of the product.
• Ergonomic, rotating handle increases work productivity and contributes to safe operation of the product.
• The installed safety cover prevents dangerous flying of chips and the cover protects the operator from possible injuries.

Technical data:

• Compatible with machines: B10 ELECTRA, B15 ELECTRA a B15 AIR
• Bevel angle: according to the milling head (30° / 45° / 60°)
• Bevel width: according the machine used (10 mm / 0.4“ or 15 mm / 0.6“)
• Range (machining of the outer diameter OD): > Ø 85 mm / 3.36“
• Wall thickness (machining of the outer diameter OD): 2,5 – 15 mm / 0.01“ – 0.6“
• Range (machining of the inner diameter ID):> Ø 500 mm / 20“ (smaller Ø with special accessories)
• Wall thickness (machining of the inner diameter ID): 5 – 15 mm / 0.19 – 0.6“
• Minimum clamping depth: 80 mm / 3.15“
• Feed: manual
• Weight: 8,4 kg / 18.5 lb (without machine B10 / B15)

Included it the price:

• Xpipe Beveler (without machine B10 / B15)

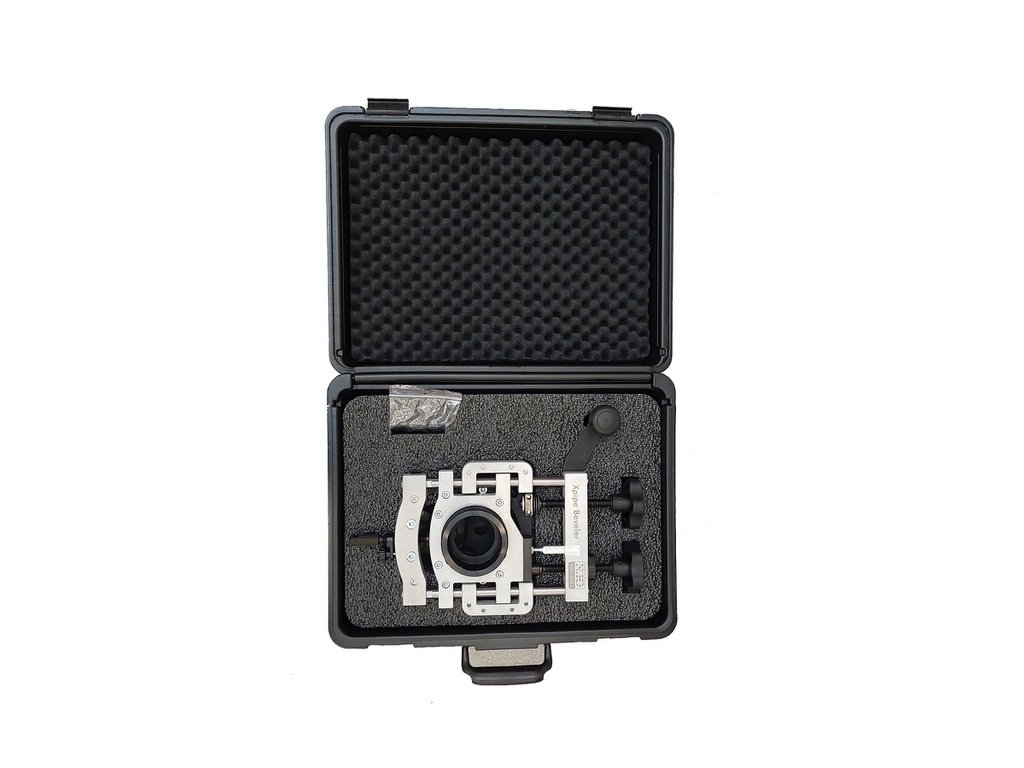

• Packet in plastic case
• Operating tools
• User manual

Art. Nr.:  25500
