Bevelling machine B15 AIR-S (4200 rpm)+ Xpipe Beveler

Bevelling machine B15 AIR-S

- Maximum bevel width 15 mm

- Edge rounding

- Reduced speed enables the machining of stainless steel

Pneumatic Hand Beveler with huge power for straight edges, contours, boreholes, radius. The beveler is designed and produced by NKO MACHINES and brings a new high ergonomics design and huge power for every day beveling. Aluminum alloy body engine, Hardox support plate, milling head and inserts designed especially for hand beveler.

• Scale for precise adjustment of the bevel width
• For bevelling and deburring steel, aluminum, and other materials
• Interchangeable head for determining the bevel angle
• Powerful hand-held tools
• The pneumatic drive enables use in EX-protected areas
• Edge rounding for preparation prior to surface treatment, e.g., painting
• Model B15 AIR-S with low speed enables the machining of stainless steel

Technical data:

• Bevel angle: Interchangeable cutter 30°, 37.5°, 45°, 50°, 60° - other angles on request
• Bevel width (hypotenuse): 0 - 15 mm ≤ 400 Mpa / 0 - 8 mm ≥ 400 Mpa
• Rounding radius: R 2.5 mm, R 3.5 mm, R 4.00 mm
• Motor: Compressed air motor
• Power: 2984 W
• Operating pressure: 6 bar
• Speed: 4200 rpm (B15 AIR 6000 rpm)
• Air consumption: 750 l/min
• Feed: Hand-guided
• Weight: 7.5 kg

Included in the price:

• Beveler B15 AIR
• Needed tools for operation
• 1 operation manual
• WITHOUT HEAD! Select the desired head angle

Art. Nr.:  27220S

 ________________________________________________________________________________________

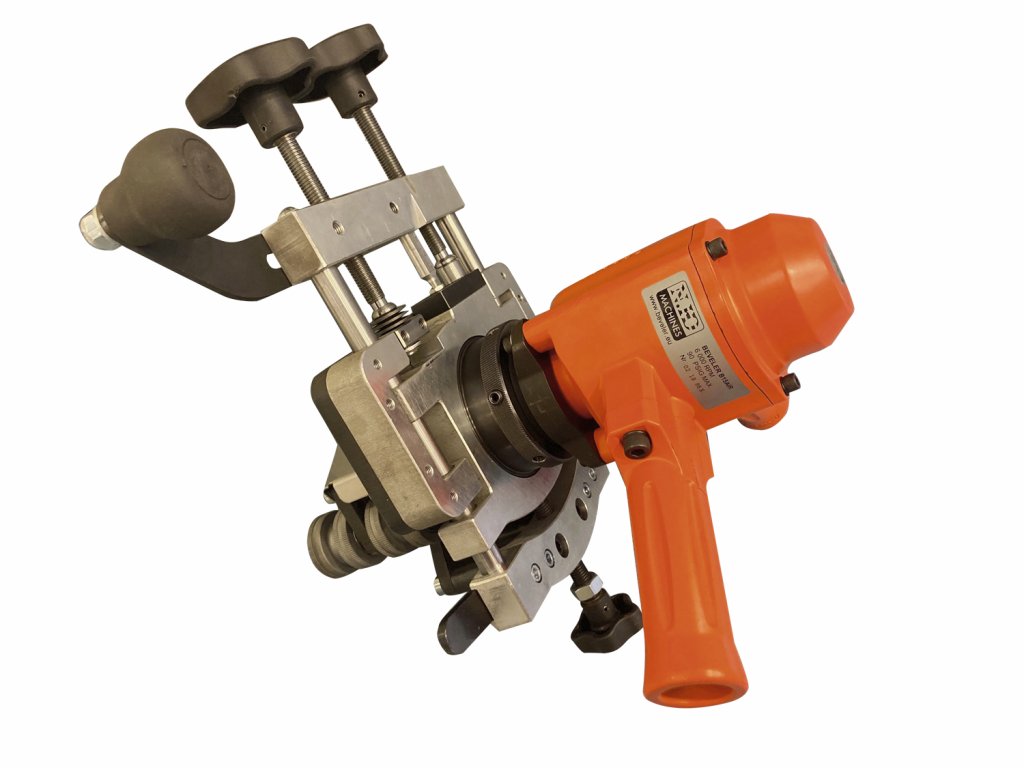

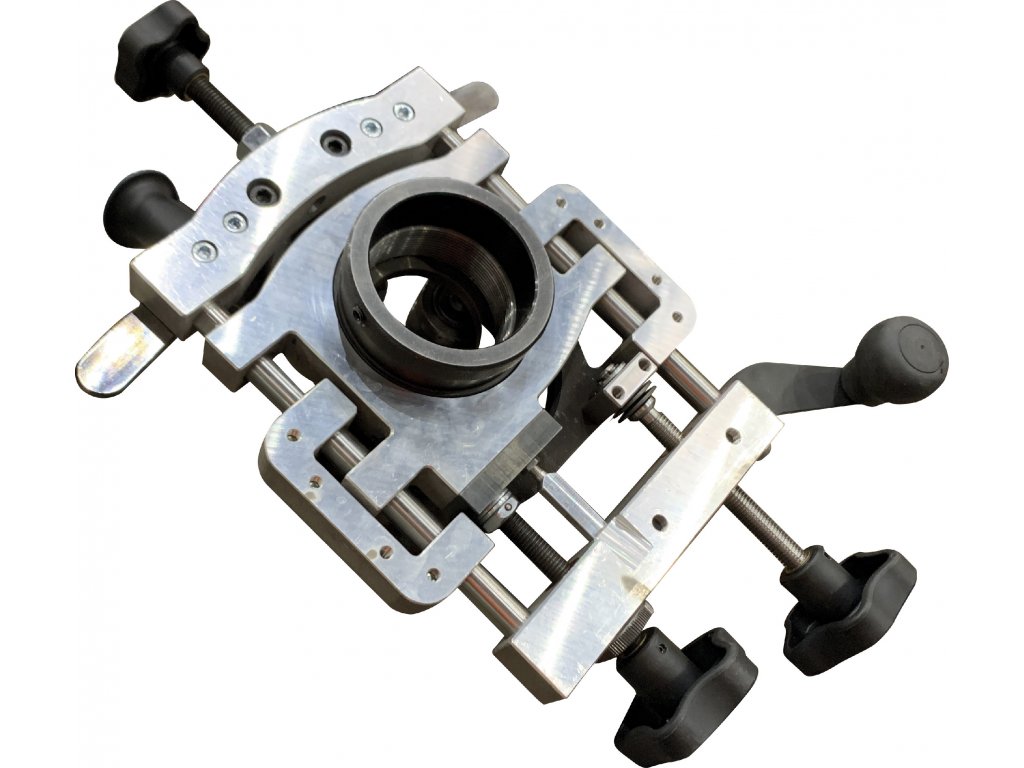

Xpipe Beveler (accessory for B-Line machines)

- Maximum bevel width of 10 mm

- Compatible with B10 ELECTRA, B15 ELECTRA, and B15 AIR

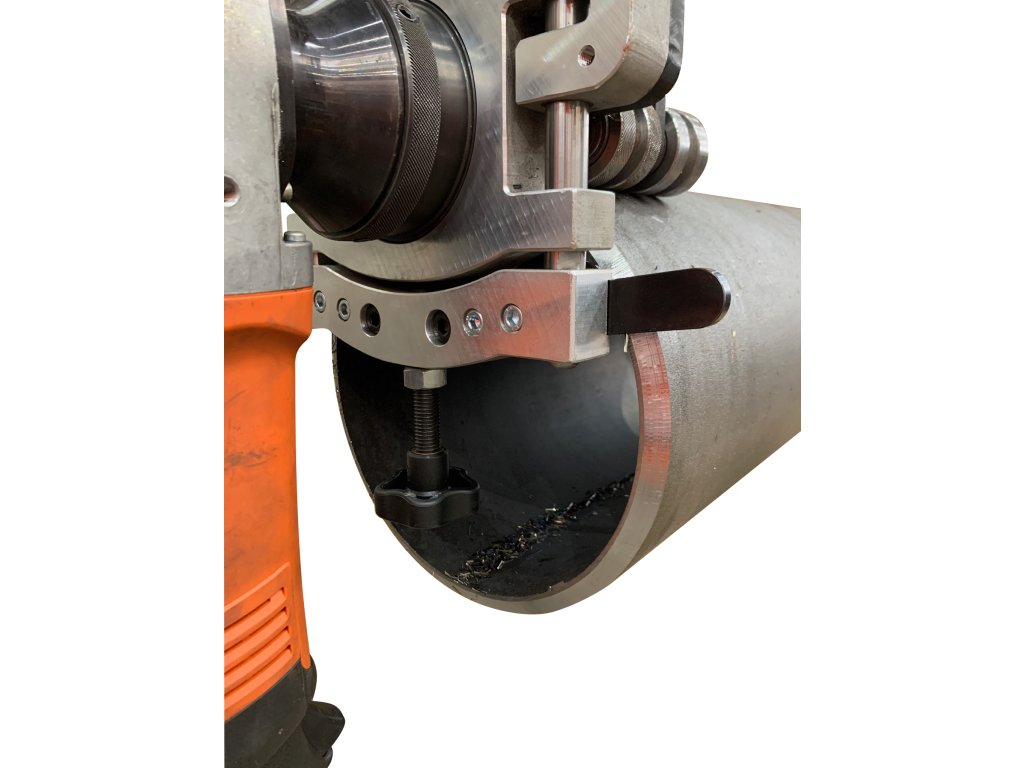

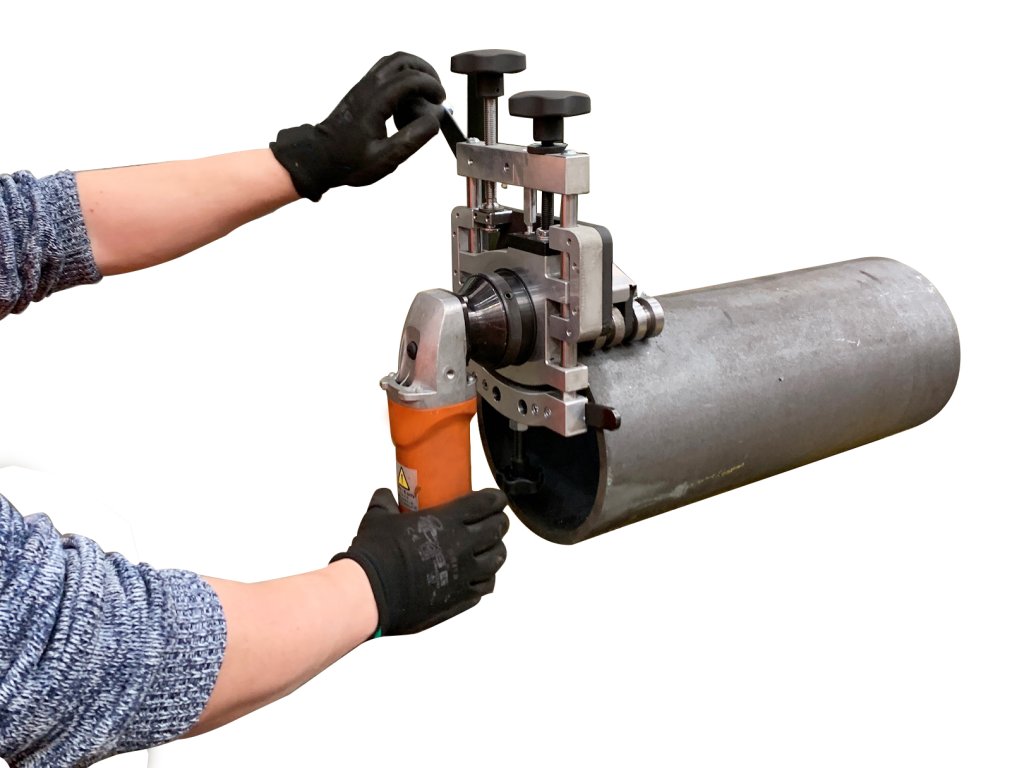

Bevelling tool for easy and fast machining of pipes from Ø 85 mm (3.36“).
The maximum diameter of the pipe is not limited, and the tool can be used on flat materials.
The unique mechanism of clamping, guiding rollers ensures precise and comfortable guiding around the circumference of the machined pipe or along the edge of the sheet metal.
The robust frame of the body of the tool guarantees constant cut with a minimum of possible vibrations and uncompromising stability of the selected bevel angle.

• This tool is designed to work with B10 Electra, B15 Electra and B15 AIR bevelling machine.
• The bevel depth can be set continuously, and the values read on the built-in scale.
• Special one-way bearings for the roller shutters prevent any kickback when approaching the material, ensuring truly safe and comfortable beveling process.
• The set removal value can be ensured, and a constant chamfer depth can be guaranteed even on a larger number of pipes.
• Thanks to the unique, flexible mounting of the running rollers, the tool can also handle any unevenness and inaccuracies around the circumference of the pipe
• Lightweight aluminum construction of the machine frame guarantees comfortable handling of the product.
• Ergonomic, rotating handle increases work productivity and contributes to safe operation of the product.
• The installed safety cover prevents dangerous flying of chips and the cover protects the operator from possible injuries.

Technical data:

• Compatible with machines: B10 ELECTRA, B15 ELECTRA a B15 AIR
• Bevel angle: according to the milling head (30° / 45° / 60°)
• Bevel width: according the machine used (10 mm / 0.4“ or 15 mm / 0.6“)
• Range (machining of the outer diameter OD): > Ø 85 mm / 3.36“
• Wall thickness (machining of the outer diameter OD): 2,5 – 15 mm / 0.01“ – 0.6“
• Range (machining of the inner diameter ID):> Ø 500 mm / 20“ (smaller Ø with special accessories)
• Wall thickness (machining of the inner diameter ID): 5 – 15 mm / 0.19 – 0.6“
• Minimum clamping depth: 80 mm / 3.15“
• Feed: manual
• Weight: 8,4 kg / 18.5 lb (without machine B10 / B15)

Included it the price:

• Xpipe Beveler (without machine B10 / B15)

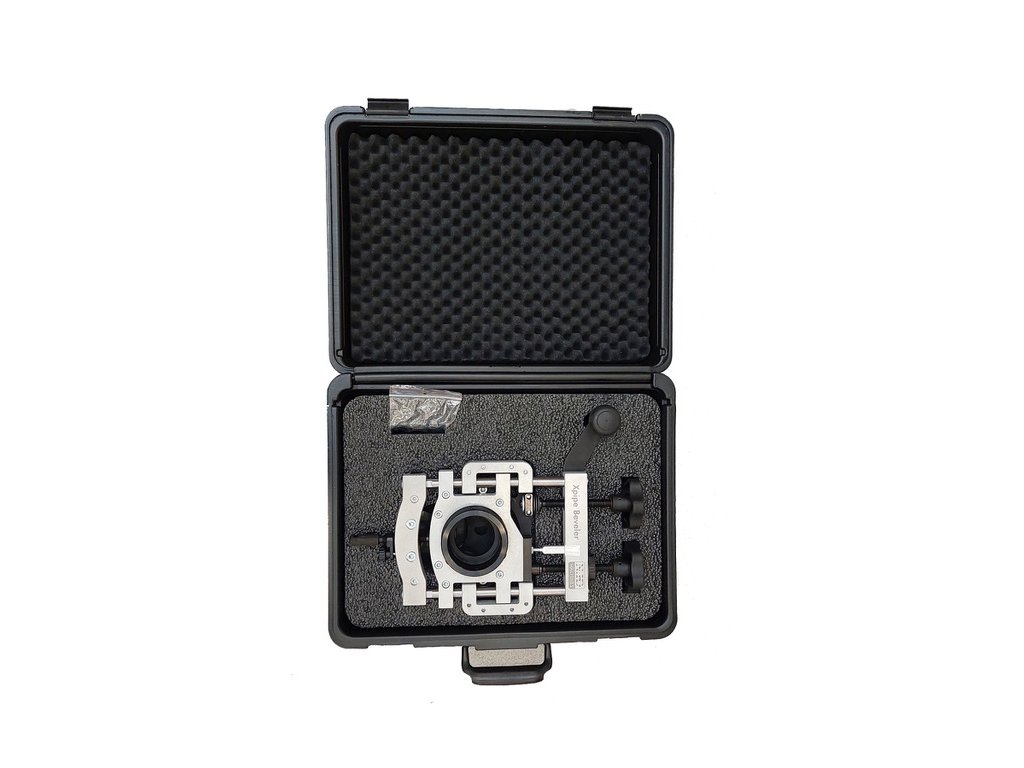

• Packet in plastic case
• Operating tools
• User manual

Art. Nr.:  25500
