Bevelling machine B10 ELECTRA + Xpipe Beveler + Motor FEIN made in Germany

Bevelling machine B10 ELECTRA

- Maximum bevel width 10 mm

- Edge rounding

Designed for bevelling and deburring workpieces, internal and external radiuses and holes.
Specially designed for producing bevels and welding preparation.
Durable and stable machine design without compromises.
Thanks to the special design of the cutting head you will you save ½ inserts at reductions of up to 8 mm / 0.31 in of the bevel width.

• Scale for accurate bevel size adjustment.
• For bevelling and deburring steel, aluminium and other materials.
• Replaceable head for changing bevel angle.
• Handheld powerful equipment.
• Electronic Speed Control.
• Edge rounding function, preparation before surface treatment.
• Manufactured in Czech Republic, with a high performance German manufactured the motor.

Technical data:

• Max. bevel width: 0 to 10 mm / 0 to 0.4 in < 400 MPa / 58 015 PSI, 0 to 5 mm / 0 to 0.2 in > 400 MPa / 58 015 PSI
• Bevel angle: replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand

• Rounding Radius: R 2,5 mm / R 3,5 mm / R 4 mm, R 0.1 in / R 0.14 in / R 0.16 in
• Motor: 1.700 W
• Speed:2700-8500 RPM
• Overload protection: thermal
• Feeding: manual
• Weight: 6 kg / 13.2 lb

Included it the price:

• Beveling system B10 ELECTRA without milling head
• Packet in a cardboard
• Operating tools
• User manual

Art. Nr.:  25300

________________________________________________________________________________________

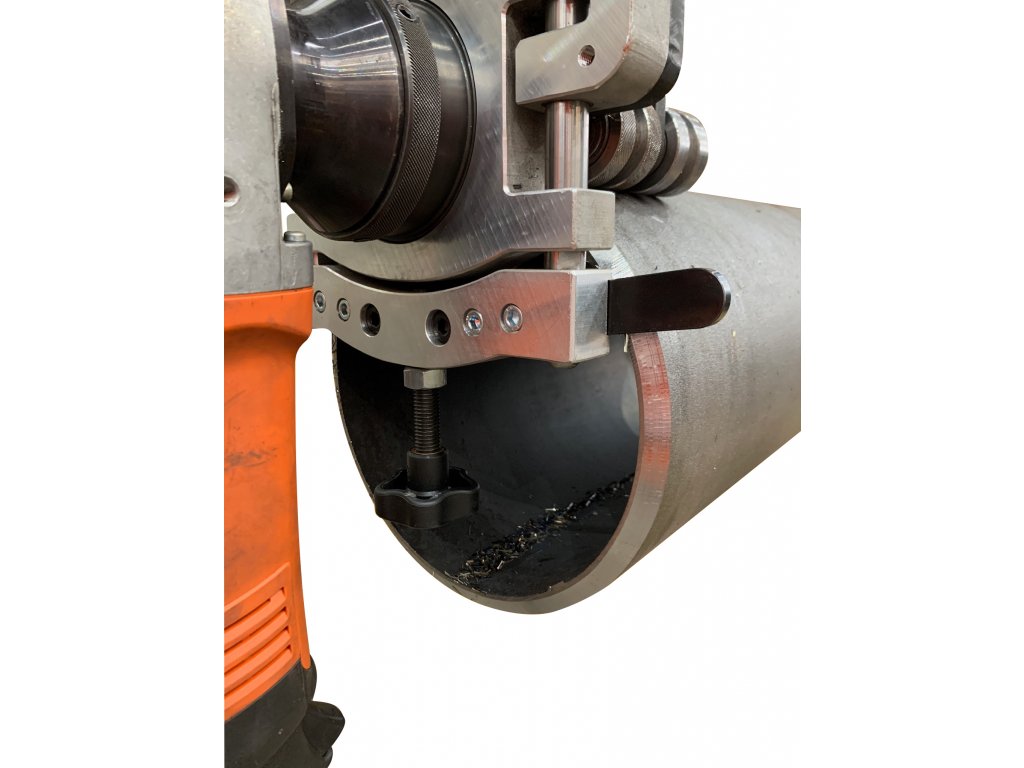

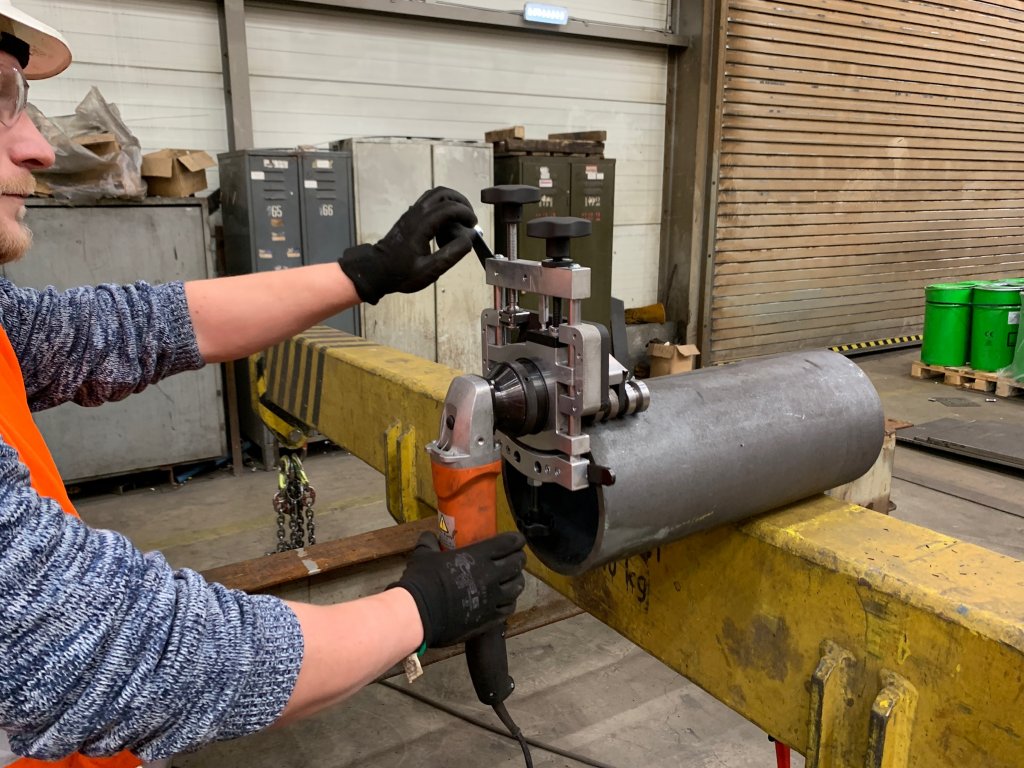

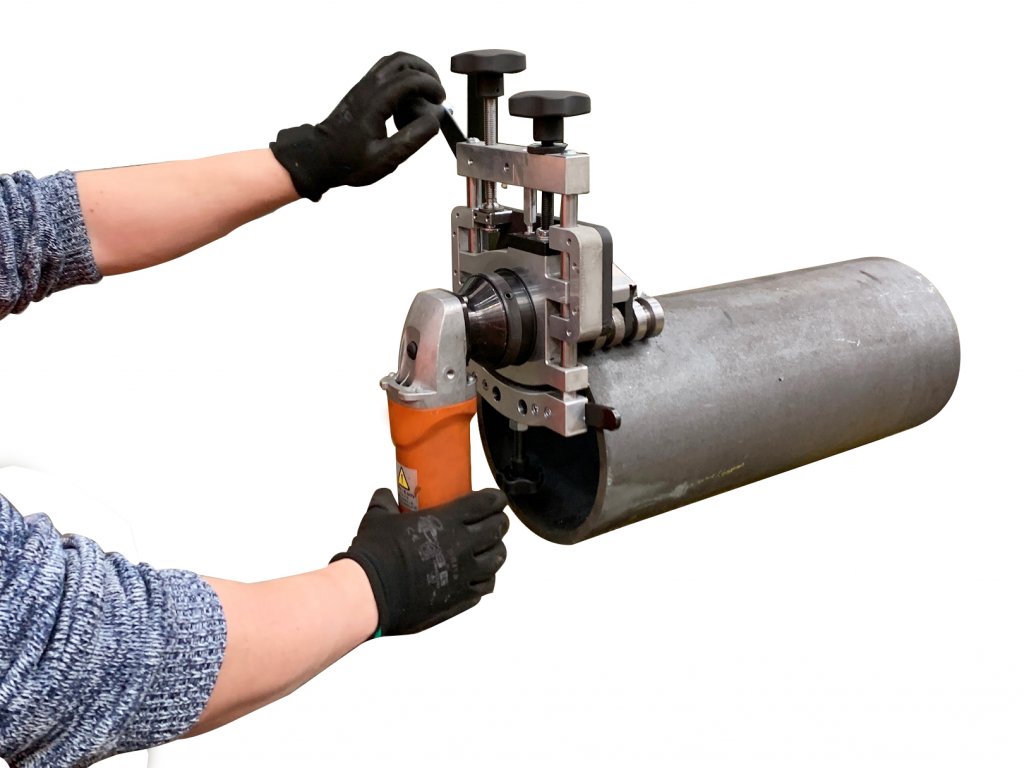

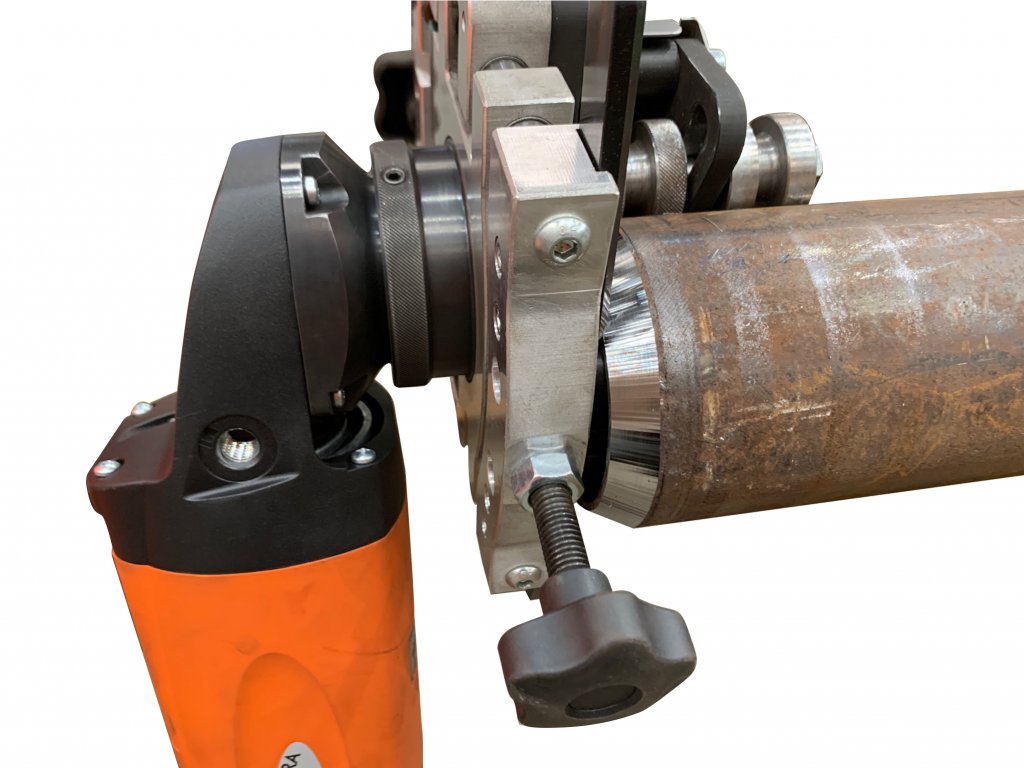

Xpipe Beveler (accessory for B-Line machines)

- Maximum bevel width of 10 mm

- Compatible with B10 ELECTRA, B15 ELECTRA, and B15 AIR

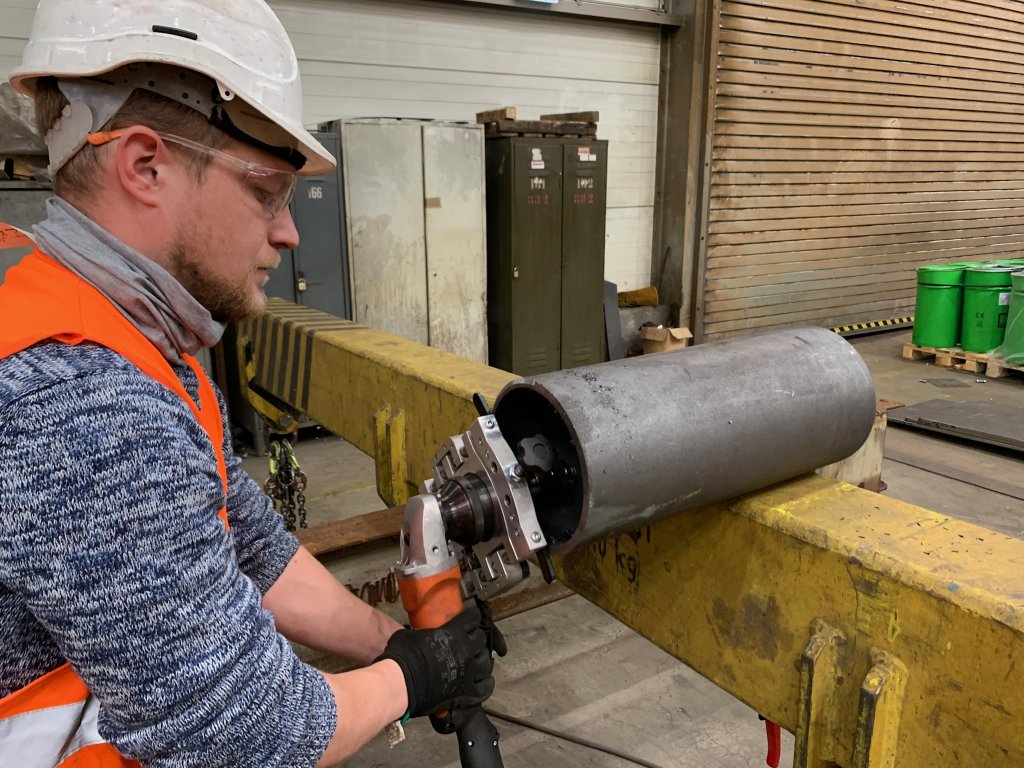

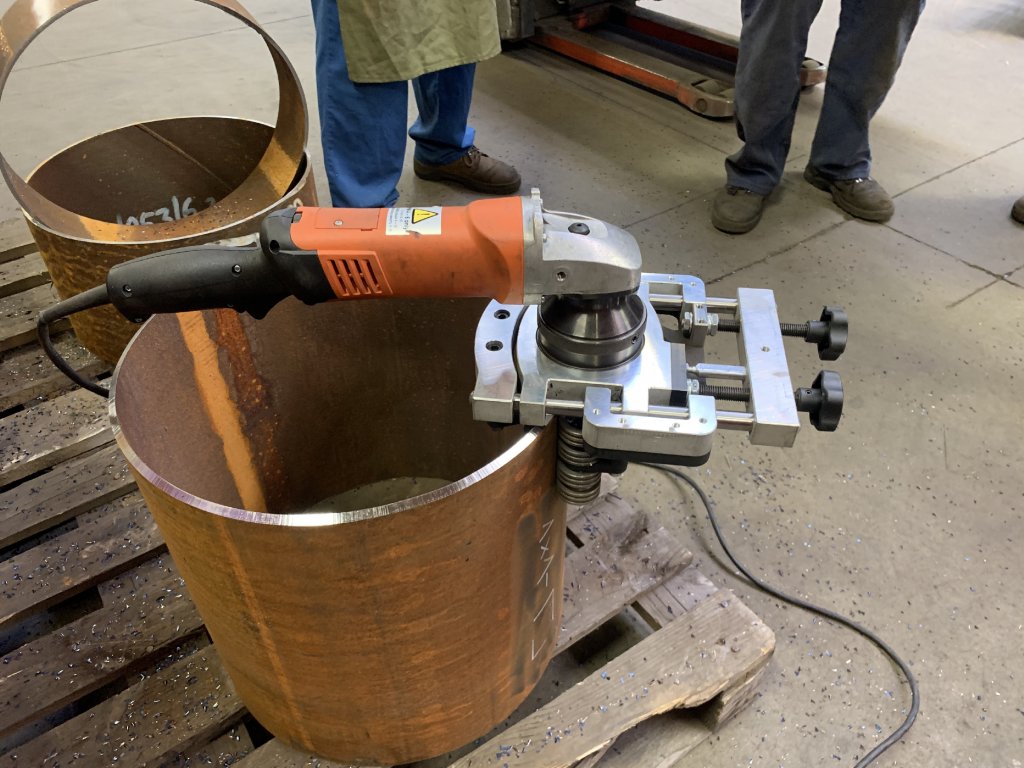

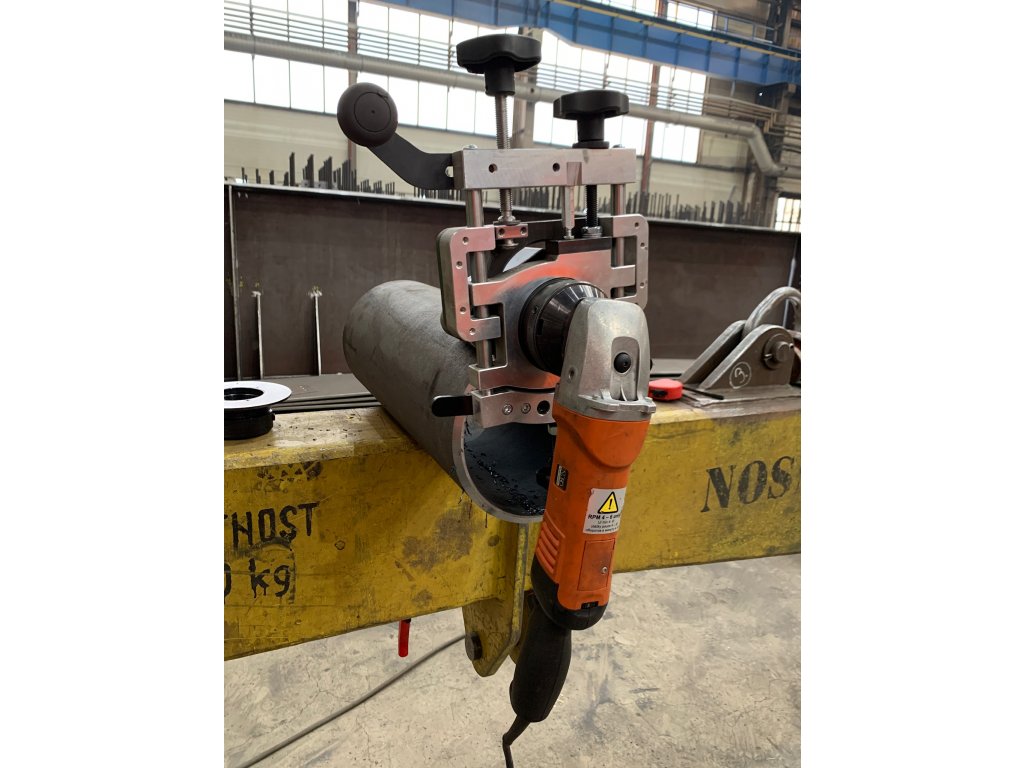

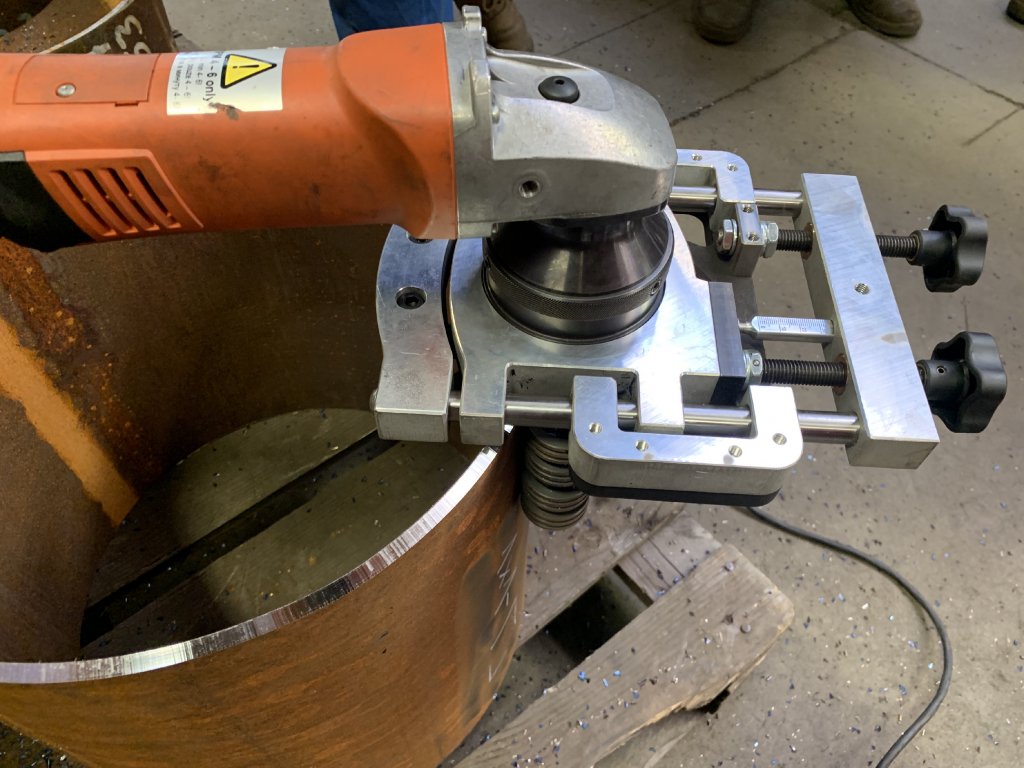

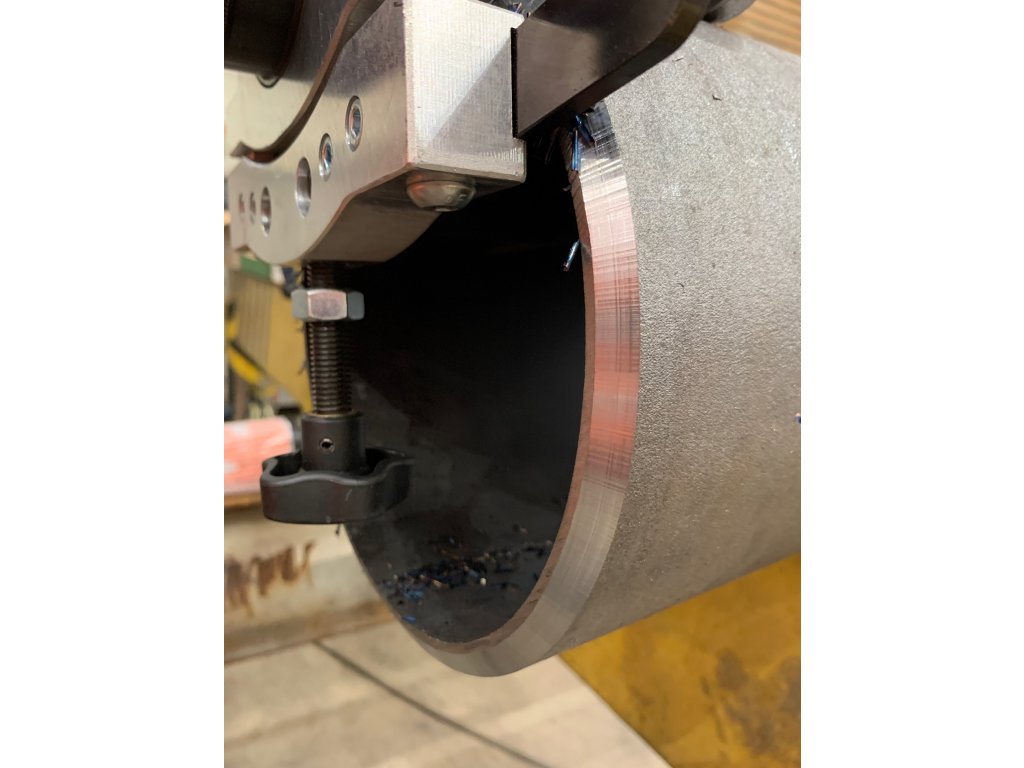

Bevelling tool for easy and fast machining of pipes from Ø 85 mm (3.36“).
The maximum diameter of the pipe is not limited, and the tool can be used on flat materials.

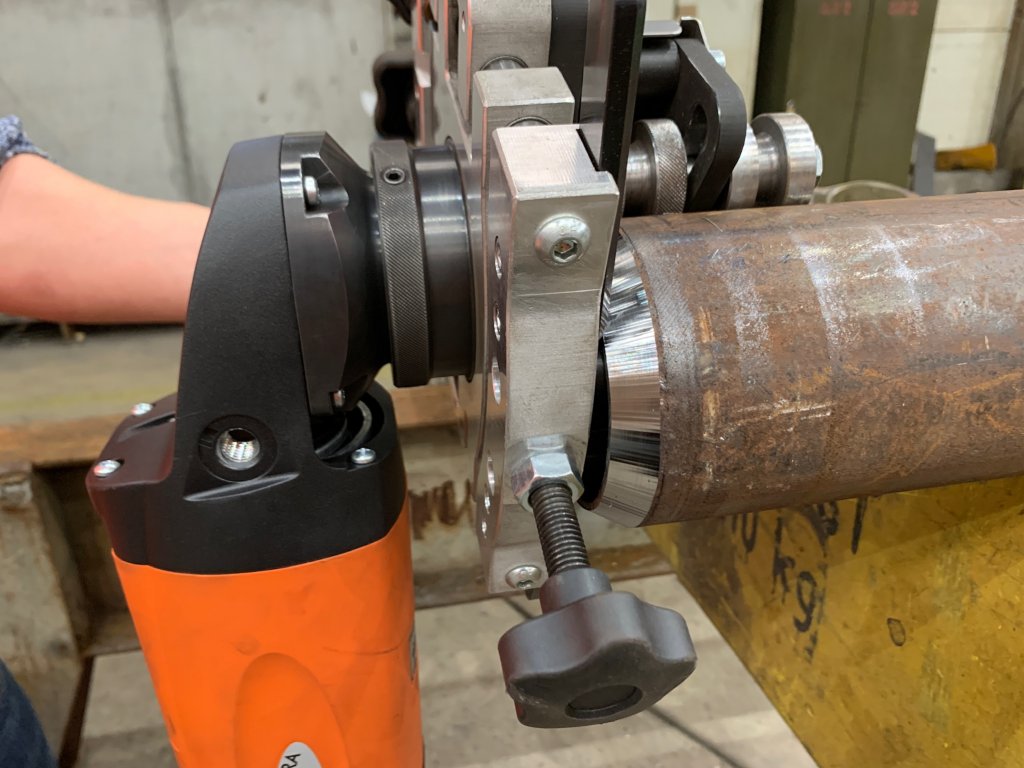

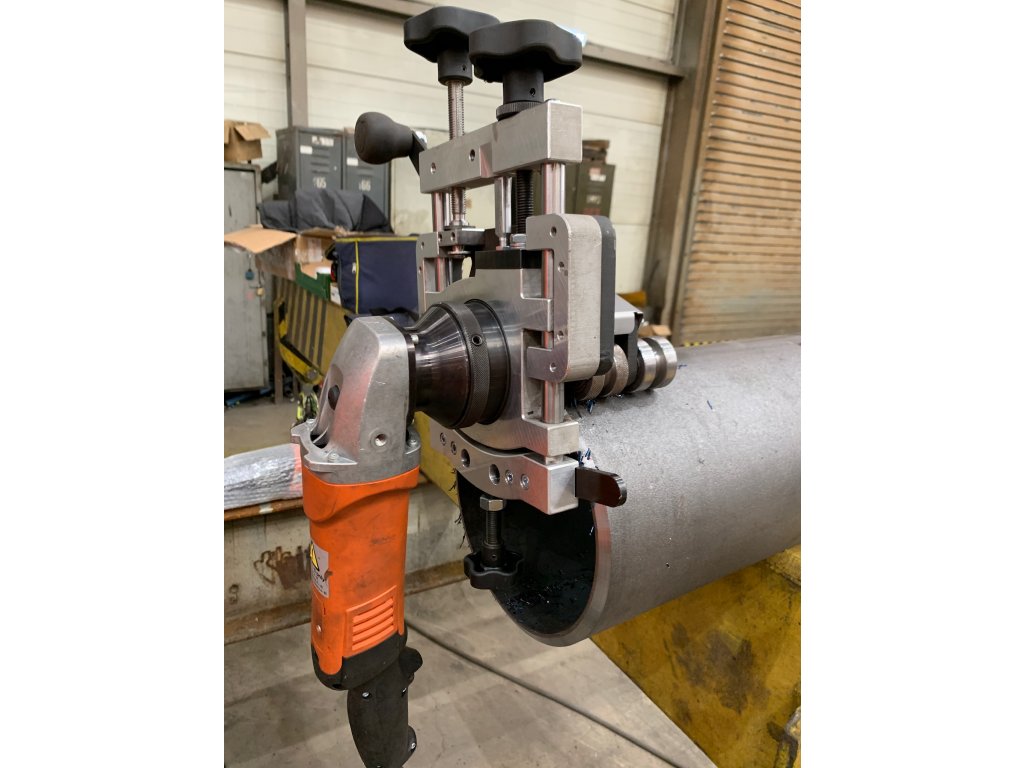

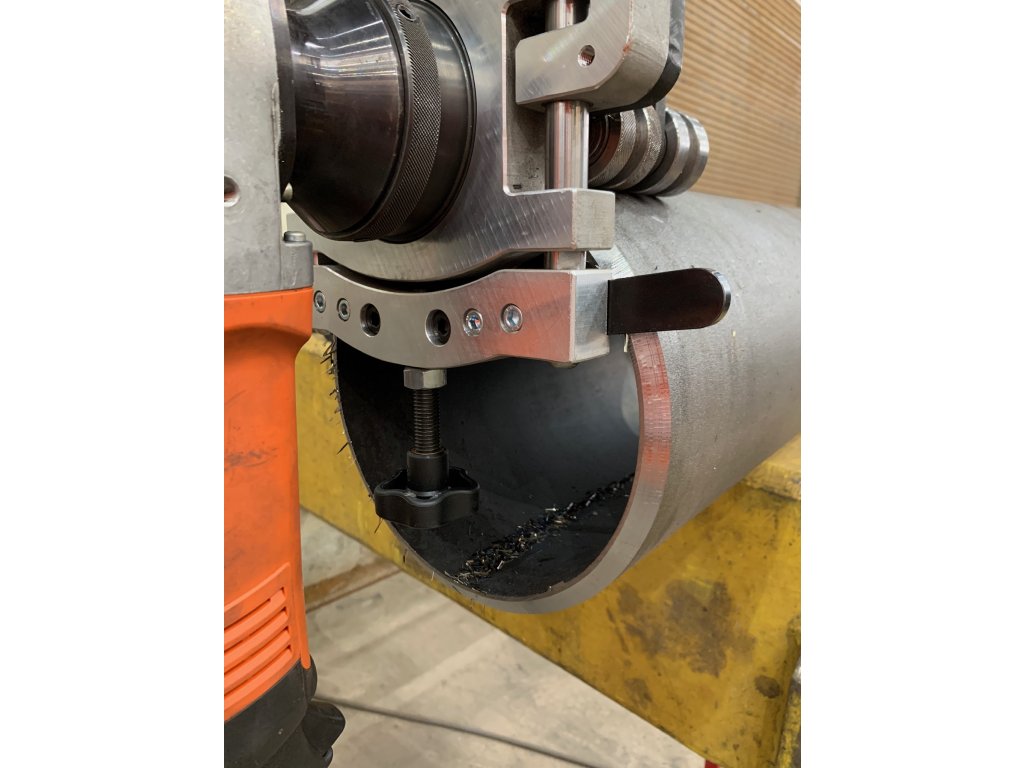

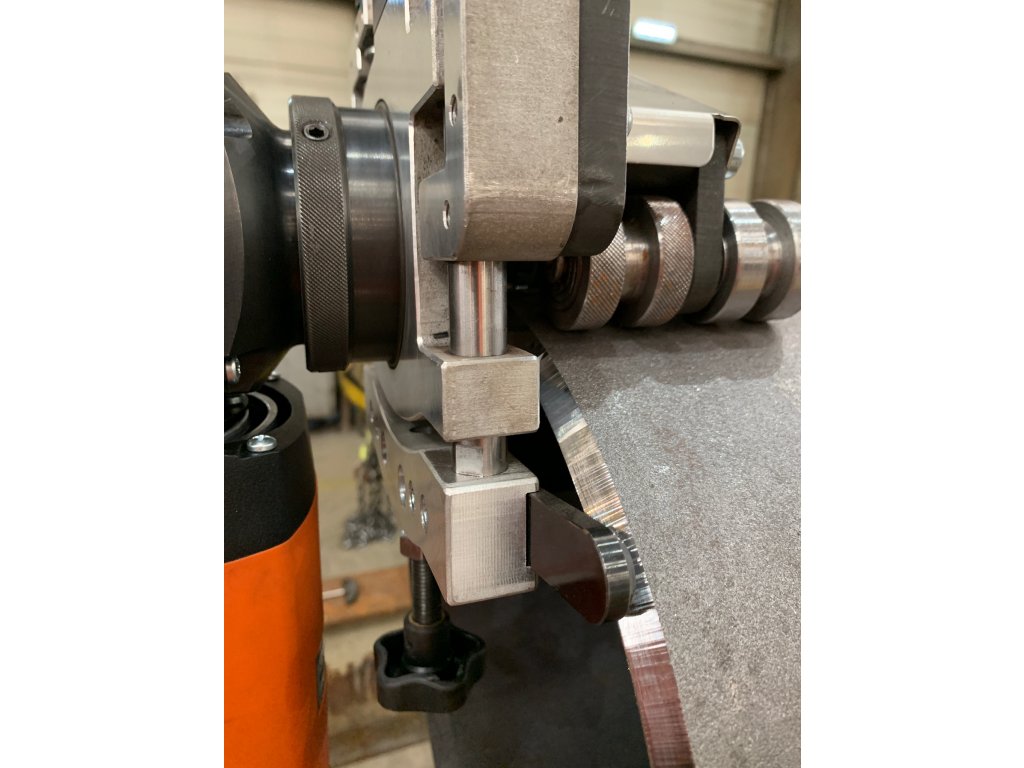

The unique mechanism of clamping, guiding rollers ensures precise and comfortable guiding around the circumference of the machined pipe or along the edge of the sheet metal.
The robust frame of the body of the tool guarantees constant cut with a minimum of possible vibrations and uncompromising stability of the selected bevel angle.

• This tool is designed to work with B10 Electra, B15 Electra and B15 AIR bevelling machine.
• The bevel depth can be set continuously, and the values read on the built-in scale.
• Special one-way bearings for the roller shutters prevent any kickback when approaching the material, ensuring truly safe and comfortable beveling process.
• The set removal value can be ensured, and a constant chamfer depth can be guaranteed even on a larger number of pipes.
• Thanks to the unique, flexible mounting of the running rollers, the tool can also handle any unevenness and inaccuracies around the circumference of the pipe
• Lightweight aluminum construction of the machine frame guarantees comfortable handling of the product.
• Ergonomic, rotating handle increases work productivity and contributes to safe operation of the product.
• The installed safety cover prevents dangerous flying of chips and the cover protects the operator from possible injuries.

Technical data:

• Compatible with machines: B10 ELECTRA, B15 ELECTRA a B15 AIR
• Bevel angle: according to the milling head (30° / 45° / 60°)
• Bevel width: according the machine used (10 mm / 0.4“ or 15 mm / 0.6“)
• Range (machining of the outer diameter OD): > Ø 85 mm / 3.36“
• Wall thickness (machining of the outer diameter OD): 2,5 – 15 mm / 0.01“ – 0.6“
• Range (machining of the inner diameter ID):> Ø 500 mm / 20“ (smaller Ø with special accessories)
• Wall thickness (machining of the inner diameter ID): 5 – 15 mm / 0.19 – 0.6“
• Minimum clamping depth: 80 mm / 3.15“
• Feed: manual
• Weight: 8,4 kg / 18.5 lb (without machine B10 / B15)

Included it the price:

• Xpipe Beveler (without machine B10 / B15)

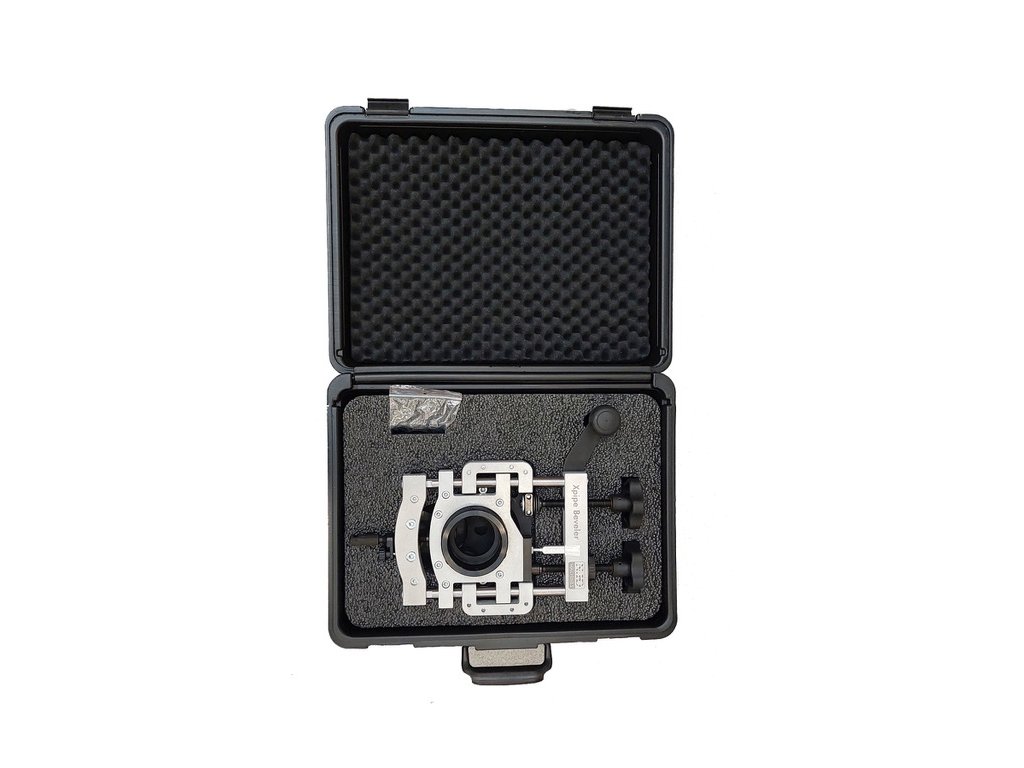

• Packet in plastic case
• Operating tools
• User manual

Art. Nr.:  25500
